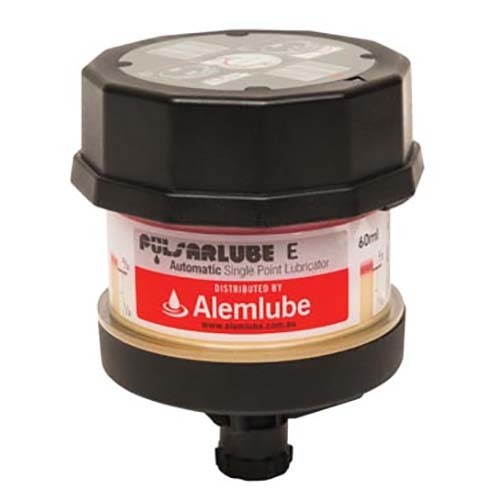

Pulsarlube Grease Lubricator E 60cc Empty

The Pulsarlube E series automatic grease lubricator provides continuous, controlled grease delivery to a single lubrication point without manual intervention. An electrochemical gas cell generates inert nitrogen (N2) gas to drive the plunger at a steady, programmable rate, holding consistent grease pressure at the lubrication point.

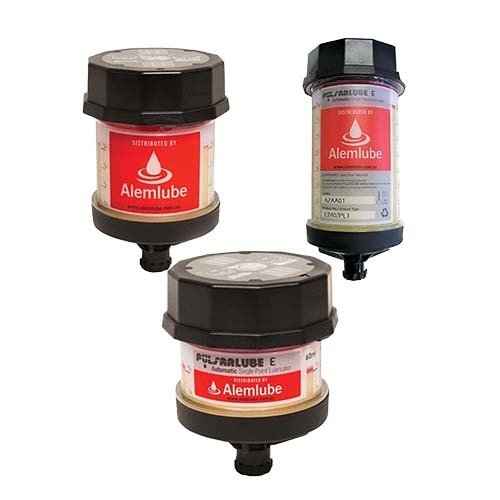

Dispensing period is instantly adjustable on/off while the unit is running, and it holds up to 70psi (5bar) and 55°C. It's intrinsically safe (Ex ia IIC T4), IECEx and ATEX certified, and rated to IP68, so it can be used in hazardous areas with flammable liquids, vapours, gases or dust. It can also be installed remotely up to 1m away via 8mm OD tube. Available in 60cc, 120cc and 240cc empty units for use with your chosen grease type.

Where this product is used

• Electric motor, pump, fan and conveyor bearing lubrication
• Remote or inaccessible lubrication points
• Hazardous areas with flammable liquids, vapours, gases or dust (Ex ia IIC T4, IECEx/ATEX certified)
• Mining and processing plant

Key specifications

• Drive: electrochemical gas cell, generates inert nitrogen (N2) gas

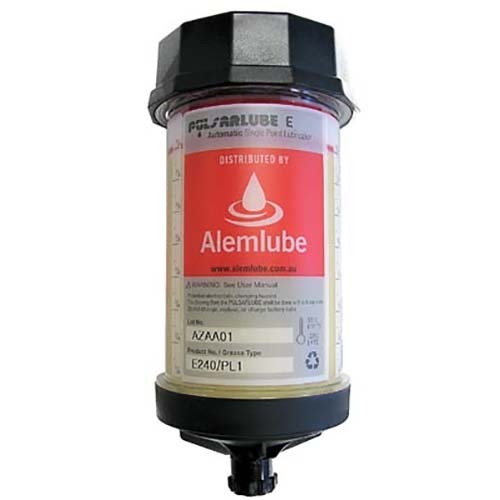

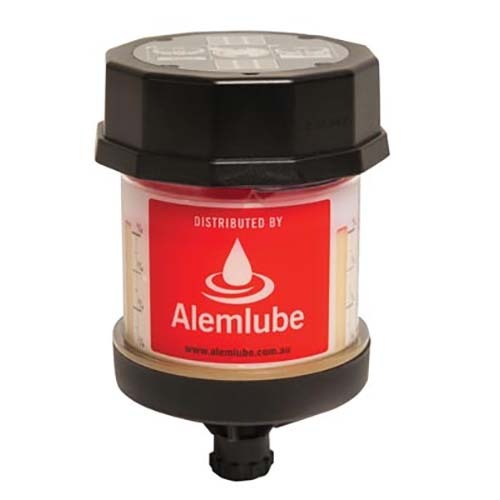

• Capacity: 60cc, 120cc or 240cc empty unit
• Maximum pressure: 70psi (5bar)
• Maximum operating temperature: 55°C
• Certification: intrinsically safe Ex ia IIC T4, IECEx, ATEX, IP68
• Remote install: up to 1m via 8mm OD tube
