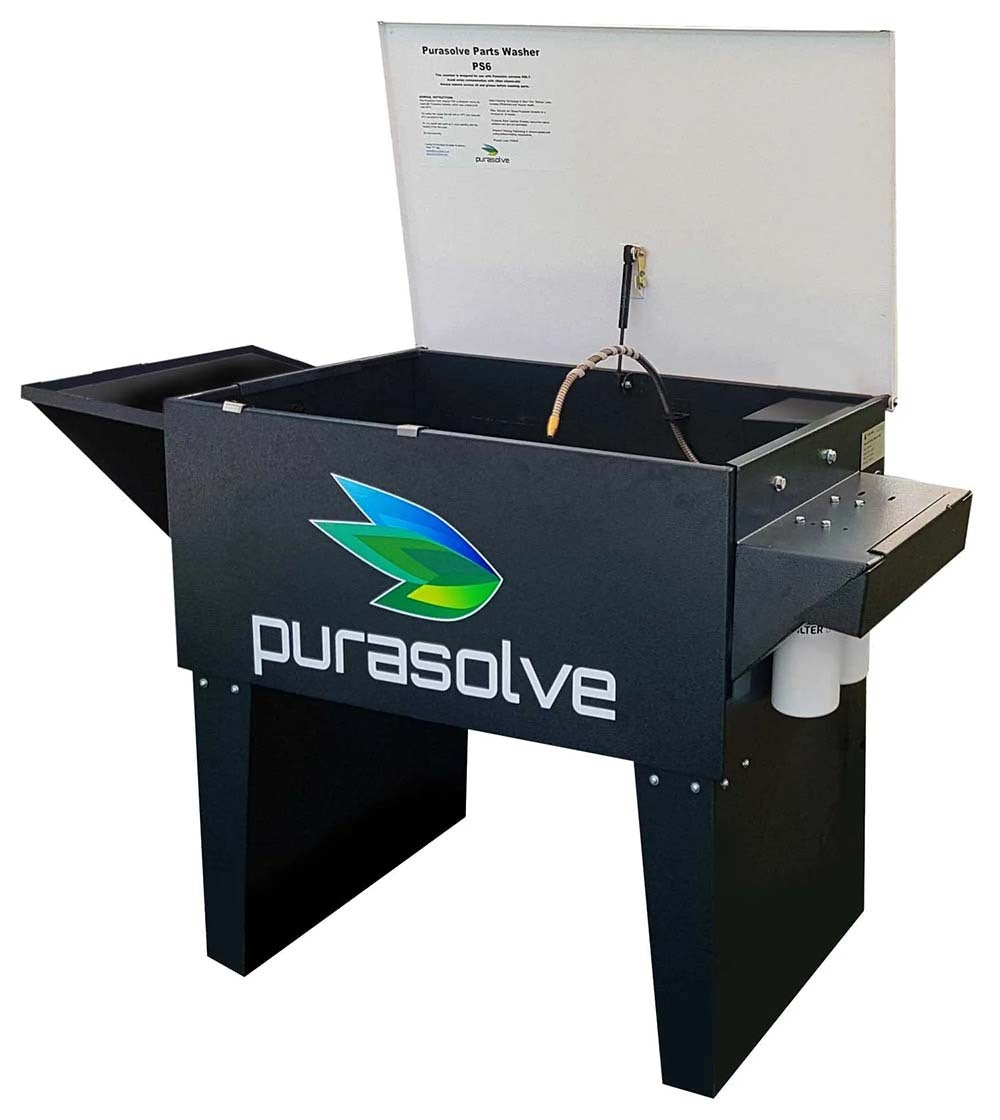

Purasolve PS6 Part Washer Cleaning System - PS6PW

• The Purasolve Parts Washer PS6 is a versatile recycling solvent cleaning station incorporating:
• Three methods of cleaning – flexible hose, hand held brush and parts soaking
• Integral recycling micro-filtration extends solvent life
• Utilises fully recyclable safety solvents for ultimate worker safety
• Significant reductions in solvent usage and disposal cost
• NSN 4940-66-164-5877
• The Purasolve Parts Washer PS6 is a heavy duty Parts Washer Cleaning System that increases safety and reduces through-life costs through a unique recycling system.

Overview

The Purasolve Parts Washer PS6 is ideal for heavy maintenance and MRO applications in transport, mining, defence, construction equipment servicing and other industrial cleaning applications.

The Standard Features of the Purasolve Parts Washer PS6 include:

• Flexible Stay-Put metal flush hose for directable hands-free flushing action
• Hand held brush attachment for detailed cleaning applications
• Parts soaking area beside sloped work shelf
• Small parts soaking, cleaning and draining basket
• Sludge collector basket with dual-element foam filter provides initial sludge removal
• Dual micro-filtration unit polishes solvent removing particles to less than 1 micron.
• Sturdy steel tank construction
• Hammer-tone powder-coat finish for durability and long-life
• Bottom drain plug convenient for fluid change-outs
• Fusible safety link closes lid in event of fire
• Powerful 30 LPM centrifugal column pump
• Removable sloped work shelf for parts cleaning above fluid or soaking in solvent tank
• Integrated external drain shelf drains solution to tank and reduces drying time

The Purasolve parts cleaning solvents and integral micro-filtration unit are especially designed to work together to reduce waste disposal costs and enable easier maintenance.

Filtering the Purasolve solvent down to less than 1 micron, it effectively removes oils and greases that are washed off the parts and dissolved in the cleaning solution.

Solvent life extension becomes easy, effective and predictable, resulting in significate savings in through-life costs, along with protecting the health of the user.

Specification

• Overall dimensions: 1510mmL x 580mmW x 1410mmH
• Inside tub dimensions: 890mmL x 530mmW x 405mmH
• Work area dimensions: 530mmL x 730mmW x 405mmH
• Pump system: 2,000 litres/hour pump
• Solvent capacity: 60-75 litres
• Operating Voltage: 240v/ 50 Hz
