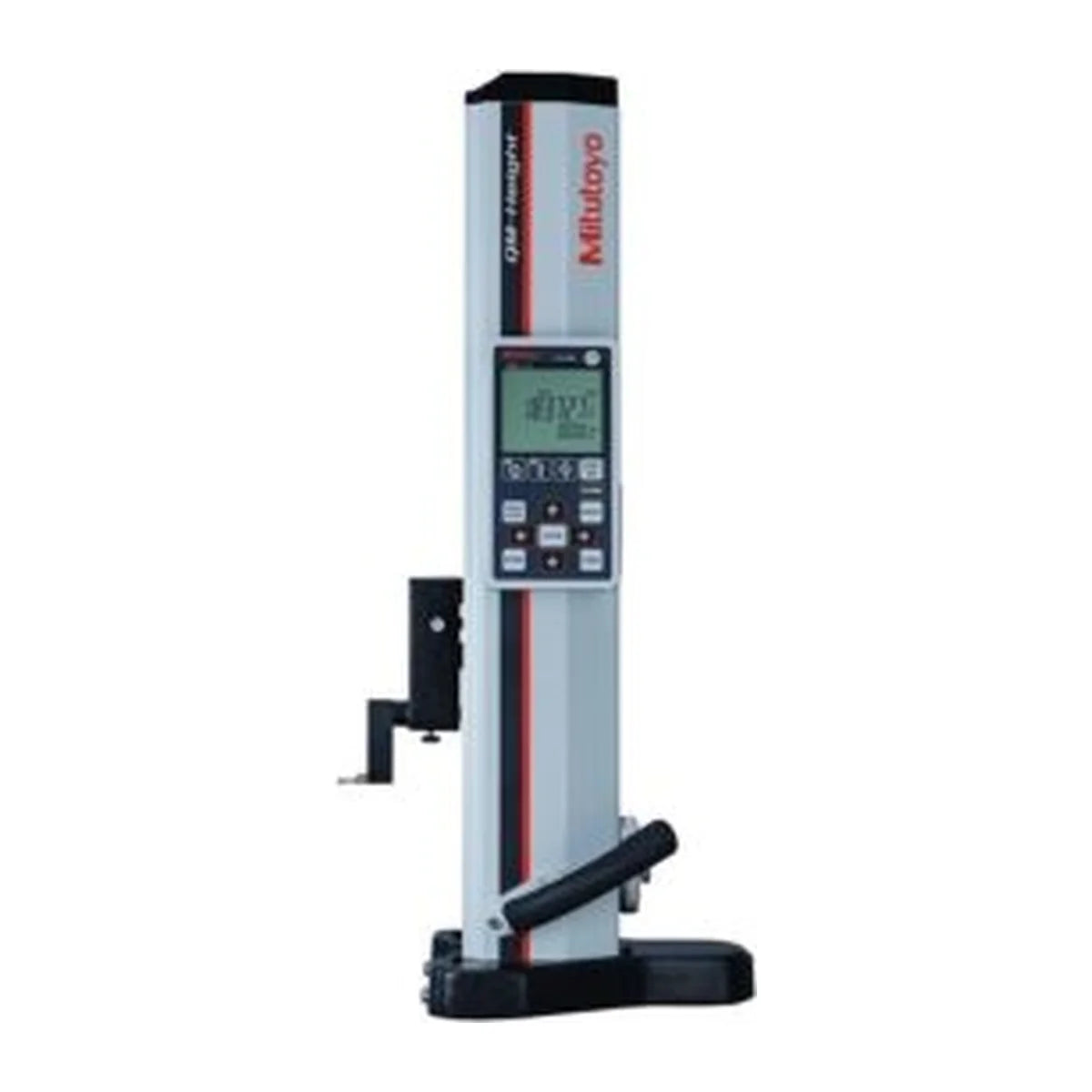

Mitutoyo QM-Height 350mm Height Gauge, Air

The Mitutoyo QM-Height is a high-precision ABSOLUTE digital height gauge for toolrooms and quality control. Both models here have built-in air suspension and come in two sizes: a 350mm (14") slider stroke that measures from 0 to 465mm, and a 600mm (24") slider stroke that measures from 0 to 715mm with the probe at the highest position.

The accuracy at 20°C is ±(2.4 + 2.1L/600) µm, where L is the measuring length in mm. Repeatability is up to 1.8µm using the 5mm ball probe. Air suspension has a pump that helps you reposition the gauge on a surface plate. Do not measure while the pump is running. Use a surface plate of JIS grade 1 or better. The tolerance screen shows GO and NG at a glance. Batteries last about 1200 hours without air suspension and about 90 hours with it.

Where this product is used

• High-accuracy height, step and width measuring on a surface plate
• Measuring inside and outside diameters and circle pitch
• Scanning for maximum and minimum heights
• Pass and fail checks against set tolerances

Features

• ABSOLUTE electromagnetic induction scale that keeps its origin after power-up
• Accuracy of ±(2.4 + 2.1L/600) µm at 20°C
• Resolution down to 0.001mm or .00005"
• Built-in air suspension for moving the gauge over a surface plate
• GO and NG tolerance judgement shown by LED lights and symbols
• Large LCD with back light and icon keys
• Digimatic and USB data output as standard
• Probe calibration block, 5mm stepped probe and 4 AA batteries supplied
• About 1200 hours of battery without air suspension and about 90 hours with it

Key specifications

Supplied with

• QM-Height gauge
• Probe diameter calibration block
• Stepped probe, 5mm
• 4 AA batteries
• Not included: AC adapter (optional)
