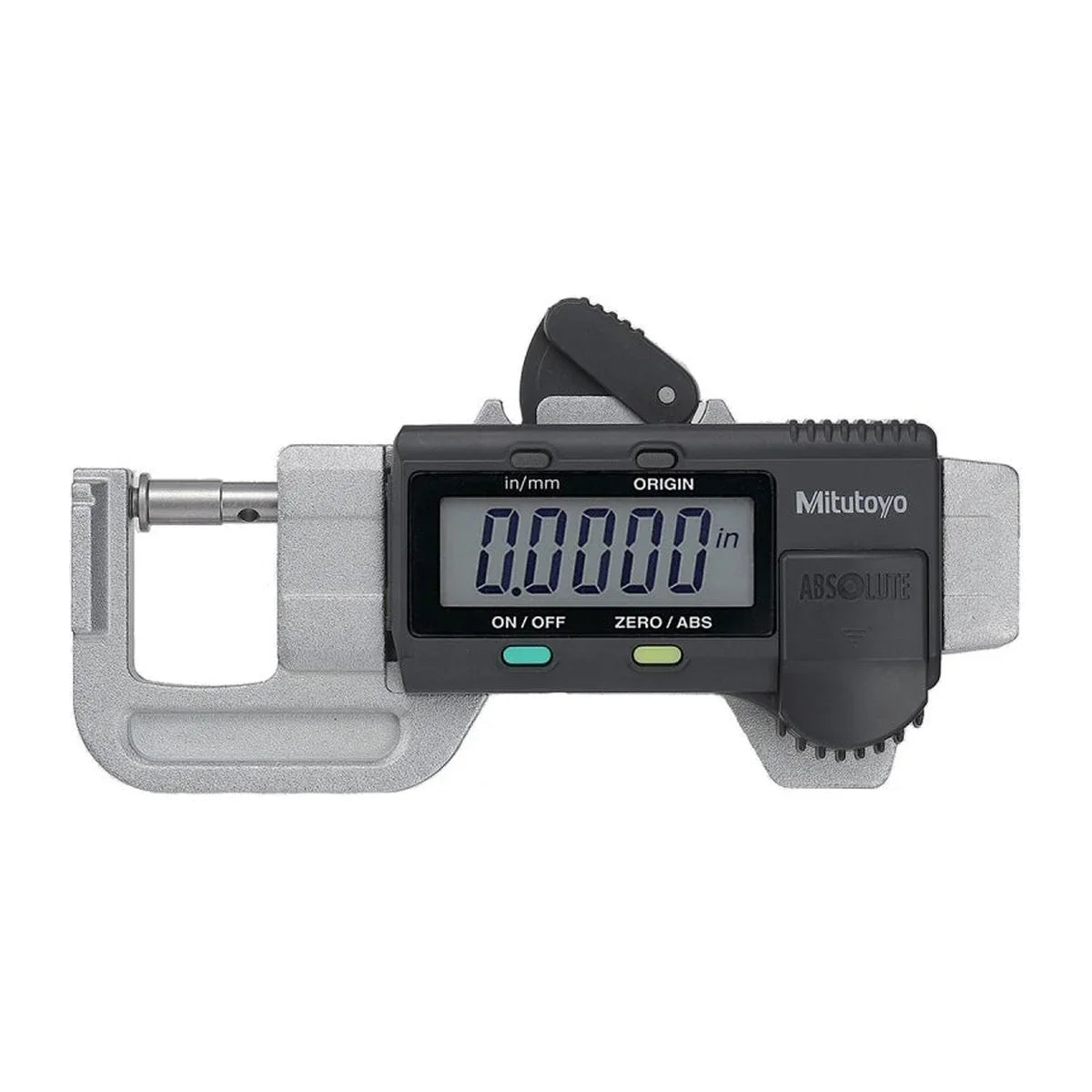

Mitutoyo QUICKmini 700-118-30, 0 - 0.5 in

The Mitutoyo QUICKmini 700-118-30 is a light, palm-sized digital gauge for quick checks on small, thin or delicate items. It suits jobs such as small workpieces like screws and tappet shims, thin materials like sheet, foil and paper, and thin lines and bars like wire and PCB drills. It suits quality control teams and workshops that check small, thin parts.

It reads 0 - 0.5 in to a resolution of 0.0005 in or 0.01mm. Resolution is the smallest step the display shows. It is not the same as accuracy, which is the biggest error Mitutoyo allows. It has an absolute scale, which keeps its position so you do not need to zero it every time you switch on. You can also zero it anywhere for comparison readings.

Where this product is used

• Checking small parts such as screws and engine tappet shims
• Measuring thin sheet, foil, paper and filter material
• Checking thin lines and bars such as wire and PCB drills

Features

• Palm-sized and lightweight at 100 g
• Reads 0 - 0.5 in with a resolution of 0.0005 in or 0.01mm
• Accuracy of ±0.001 in, excluding the quantizing error of ±1 count
• Absolute scale: no zero-setting each time it is switched on
• Incremental mode zeroes the display anywhere for comparison readings
• Large LCD characters reduce eye strain
• Low battery alarm shows a B mark before it stops measuring
• An SR44 battery is included for initial operational checks
