***Special Manual Order. Due to variation in shipping costs, please contact Customer Service for a quote specific to your area or requirement.***

***Finance option available to approved applicants. Contact us for more information***

***Lift Only. Image is for illustration purposes only.***

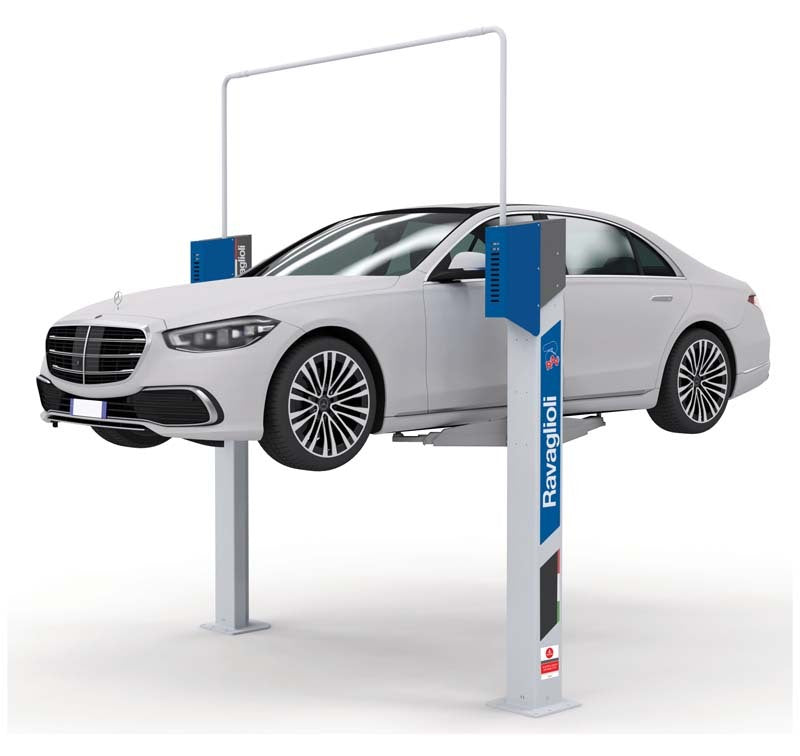

Ravaglioli Baseless Screw 2 Post Electro-Mechanical Lift

• Truly asymmetric columns designed to optimise the drive-through and footprint
• Internal carriages running on lubricated sliding guides, protected from the external environment, ensure a longer life to the sliding elements.
• 3-stage arms with quick fit and telescopic rubber pads
• Equipped with an acoustic anti-toe trap system
• Solid automatic arm locking.
• The geometry of the arms has been designed to lift from microcars to long wheelbase sedan.
• Max. lifting height 2,000mm
• Lifting time 42 seconds
• Min. pad height 96mm
• Max. pad height 130mm
• Column height 3,223mm
• Drive-through width 2,372-2,472mm
• Min. ceiling standard height 4,025mm
• Adjustable height - suits low roof applications
• Arm layout asymmetrical
• Min. front arm length 555mm
• Max. front arm length 1100mm
• Min. rear arm length 805mm
• Max. rear arm length 1,200mm
• Driving power 2x2.6kW
• Width 3,250-3,350mm
• Height 4,025mm
