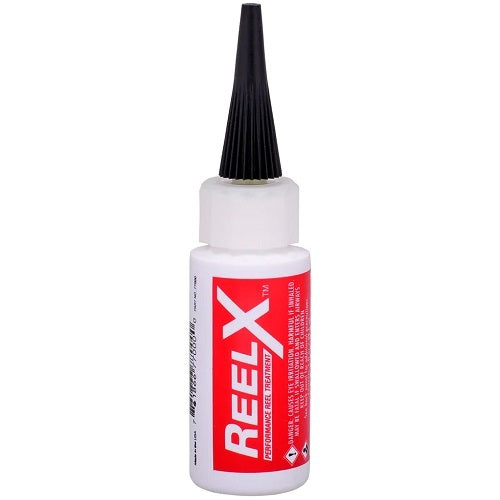

ReelX Reel Lubricant

• ReelX is a hi-tech, extreme-pressure optimized reel lubricant that virtually eliminates wear, disrupts existing corrosion, and prevents new corrosion or rust from forming.
• ReelX is the perfect choice for all spinning and casting reels.
• A breakthrough lubricant with the revolutionary CorrosionX core Polar Bonding technology, combined with extreme pressure additives specifically engineered to make fishing reels achieve their ultimate performance.
• ReelX contains no wax, tar, silicone, or other solids, so it will never gum up.
• Like all CorrosionX products, ReelX sticks to metal like a magnet, so it cannot be easily displaced by pressure, friction, or moisture. It lubricates under extreme loads and high temperatures. And not only does ReelX lubricate better, because it is bound to metal on the molecular level, it lasts many times longer than conventional fishing reel lubricants.

Physical Characteristics

Color
Blue Green
Volume Solids
>92%
Appearance
Clear
Film Thickness
0.0004" typical
Odor
Fresh Scent
pH
N/A
Specific Gravity @ 15.6°C
0.895
Vapor Pressure
8 mm Hg
Viscosity, cSt @ 40°C
33.1
Solubility in Water
Slightly Emulsifiable
Viscosity, cSt @ 100°C
7.0
Boiling Point
>200°C
Flash Point c.o.c.
>132°F
Weight per gallon
7.46 lbs.

Performance Properties

Lubrication:

Anti-Wear
0.246 mm**
ASTM D4172
Friction Coefficient
0.077
Load Carrying Capacity
750 lbs.
ASTM 2625 Method B

Corrosion Protection:

Salt Spry, hrs.
>96*
ASTM B117
(Film Thickness)
0.19 mils
Humidity Cabinet, hrs.
1320
ASTM D1748

*Sand-blasted mild steel panel. 0 - <1% surface rust**Note: The smaller the number, the better the performance. A standard lubricating oil of the same viscosity would yield a value of 1.0 - 1.2 mm.
