Tsubaki RS80 (ANSI #80) Single Strand Roller Chain, 10 ft
Available

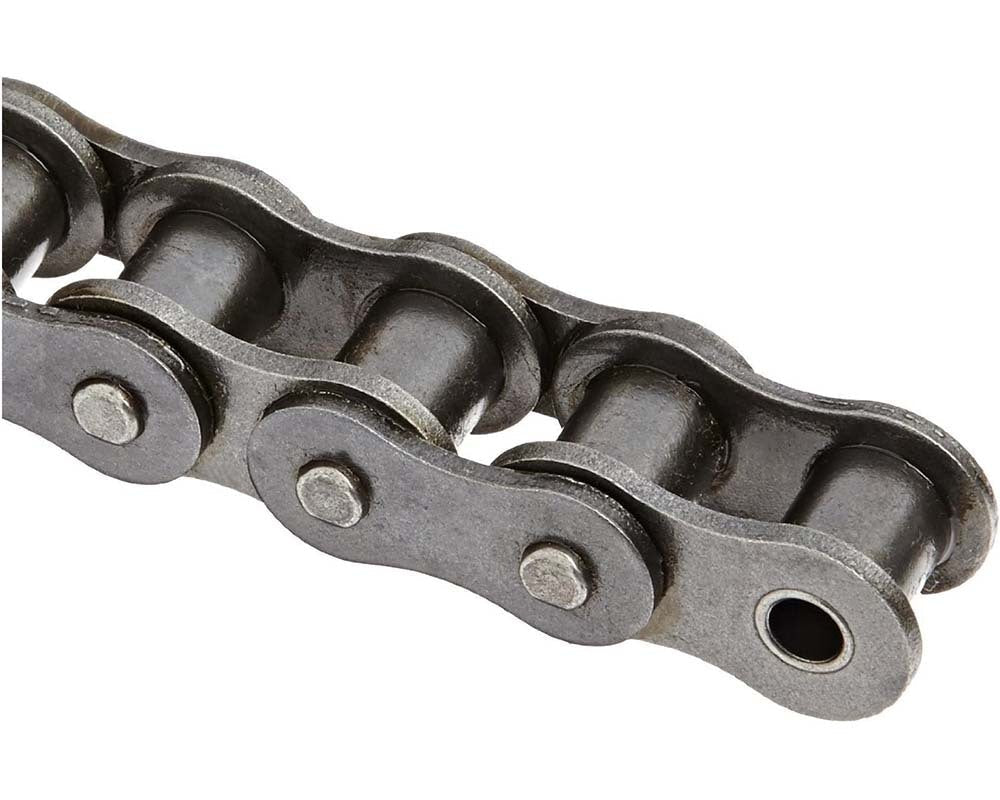

The Tsubaki RS80 is a single-strand (simplex) ANSI #80 roller chain with a 25.4 mm (1 in) pitch. It is supplied in a 10 ft (3.048 m) length.
Tsubaki lists the RS80 with a minimum tensile strength of 71.6 kN (Tsubaki figure) and 61.2 kN to ISO 606. The ANSI minimum tensile strength is 55.6 kN. Approximate mass is 2.66 kg per metre.
Connecting links on the RS80 are the cotter type; Tsubaki uses clip-type links up to RS60. The chain is to the ANSI standard, so it needs ANSI #80 sprockets.
This is a clearance item and is sold as-is. No returns or exchanges apply. Please contact us if you require further details or wish to inspect the item prior to purchase
Where this product is used
- Power transmission drives on industrial machinery
- Conveyors and material handling equipment
- Agricultural machinery
- Mining and manufacturing plant
Features
- Single-strand (simplex) roller chain, ANSI #80 (Tsubaki RS80)
- 25.4 mm (1 in) pitch
- Minimum tensile strength 71.6 kN (Tsubaki), 61.2 kN to ISO 606
- ANSI minimum tensile strength 55.6 kN
- Cotter-type connecting links
- Approximate mass 2.66 kg per metre
- Supplied in a 10 ft (3.048 m) length
- Needs ANSI #80 sprockets

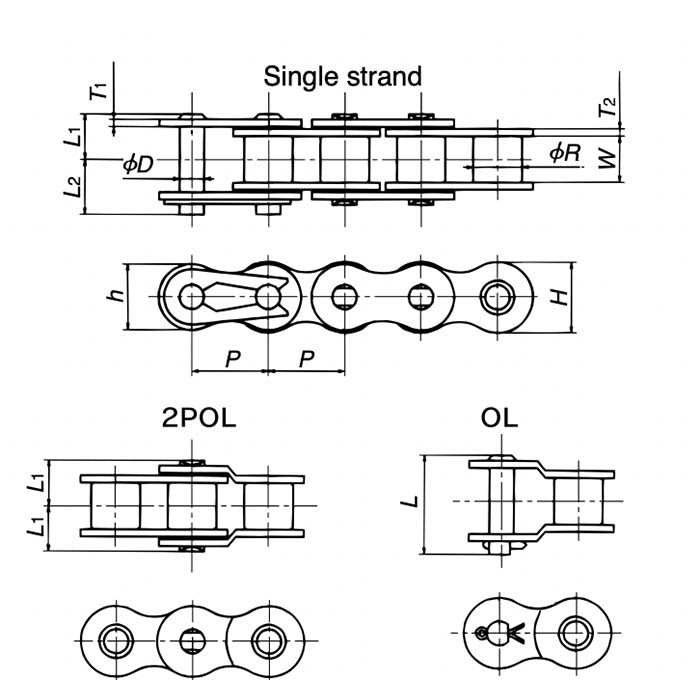

Key specifications
| Specification | Detail |
|---|---|
| Brand | Tsubaki |
| Product | Standard roller chain, single strand |
| Model | RS80 (ANSI #80) |
| Standard | ANSI |
| Number of strands | 1 (single) |
| Pitch | 25.4 mm (1 in) |
| Roller diameter | 15.88 mm |
| Inner width | 15.88 mm |
| Pin diameter | 7.94 mm |
| Pin length (L1 + L2) | 35.5 mm (16.25 + 19.25) |
| Overall pin length (L) | 36.6 mm |
| Plate height (max) | 24.1 mm |
| Plate thickness | 3.2 mm |
| Minimum tensile strength (ISO 606) | 61.2 kN |
| Minimum tensile strength (Tsubaki) | 71.6 kN |
| Minimum tensile strength (ANSI) | 55.6 kN |
| Approximate mass | 2.66 kg per metre |
| Connecting link | Cotter type |
| Length supplied | 10 ft (3.048 m) |
Selecting and fitting
Check the chain size against your sprockets before ordering: an ANSI #80 chain needs ANSI #80 sprockets. The chain number is stamped on the chain plates.
Dimensions and tensile strengths are catalogue values from Tsubaki for reference. Contact AIMS to confirm a figure if it is critical to your application.
