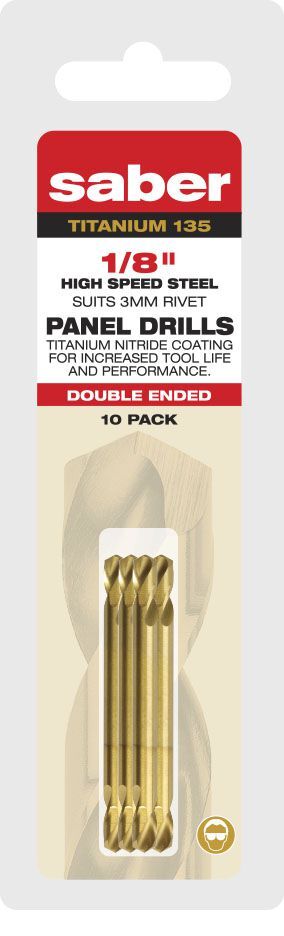

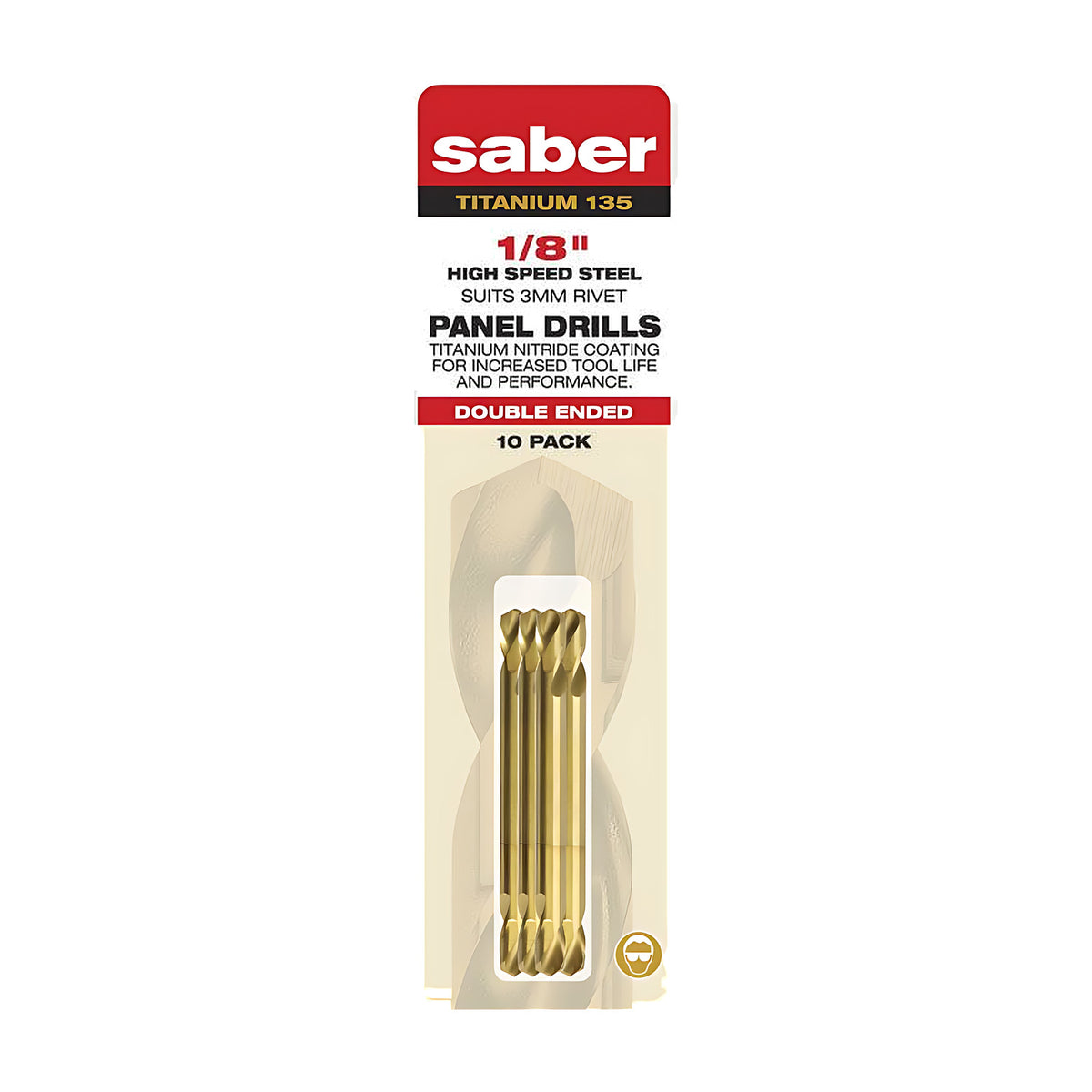

Saber 1/8" TiN Coated HSS Double Ended Panel Drill Bit Clam - 10/Pack
The price shown is for the pack.
Available
The Saber 8040-1/8T is a hang-sell clam pack of 10 TiN coated HSS double ended panel drills, 1/8" in diameter. They suit 3mm rivets. Each drill is 51mm long with a 14mm flute. They suit panel beaters, fabricators, maintenance fitters and anyone drilling small rivet holes.

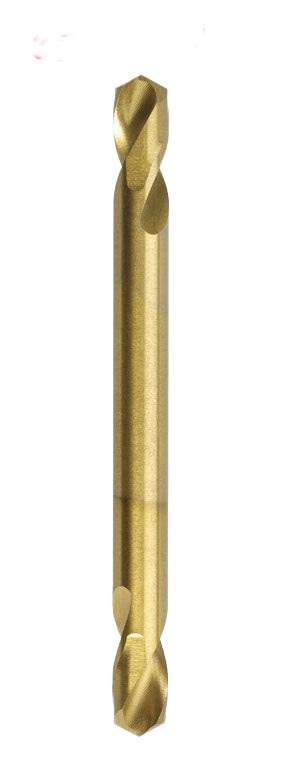

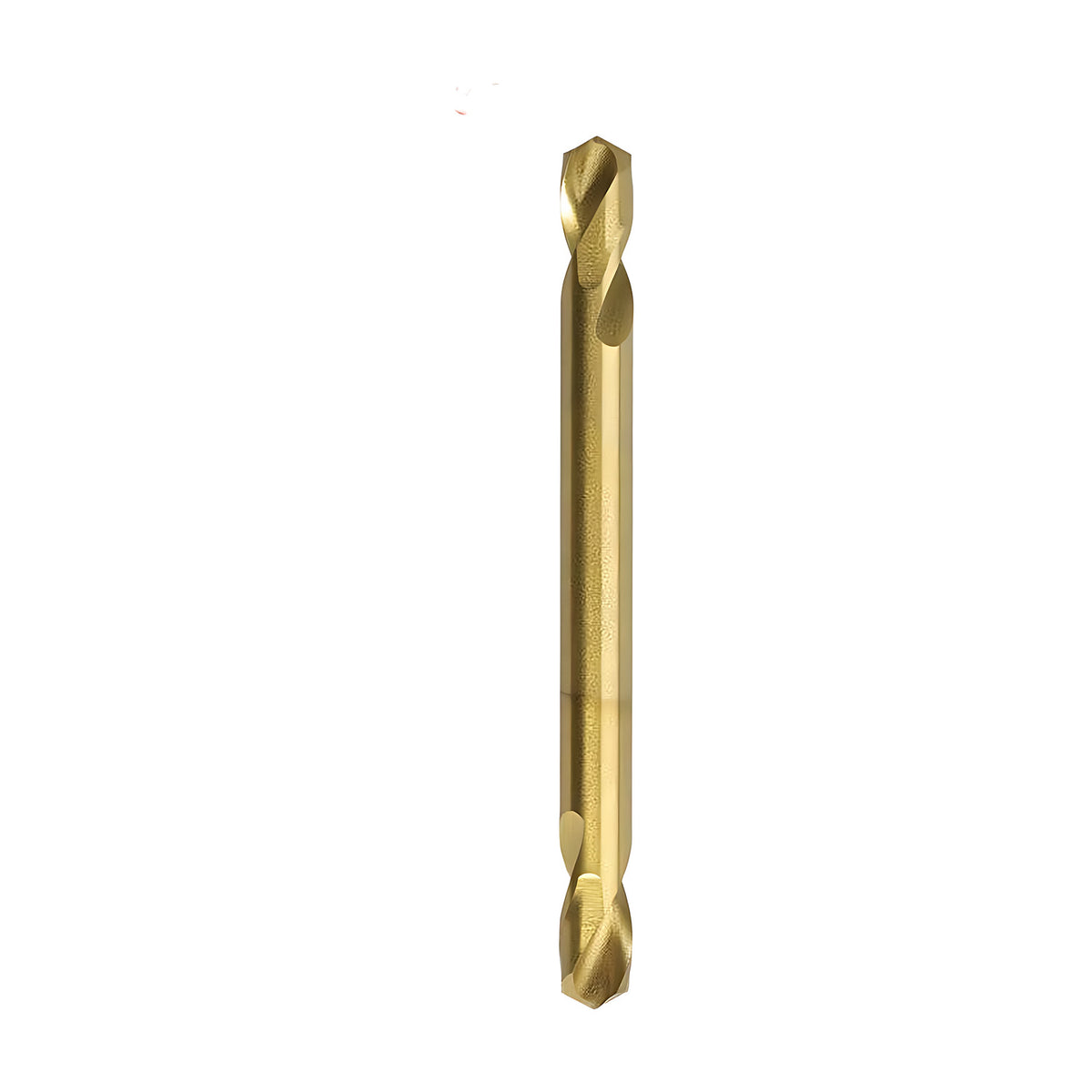

A panel drill is a short drill, commonly used for rivet holes. Double ended means there is a cutting end at each end of the drill. The gold TiN (titanium nitride) coating is applied by PVD. It helps dissipate heat and reduces friction and cold welding, so higher speeds and feeds are possible and tool life is greatly increased. The 135 degree split point centres itself and reduces the need for end thrust, and it performs better in harder steels. For larger rivets, the 11 gauge 8040-11T takes 3/16" rivets. The same 1/8" drill as a loose pack of 10 is the 8040-1/8.
Where this product is used
- Drilling 1/8" holes for 3mm rivets
- Panel and sheet fabrication where a short drill is needed
- Bodyshop and workshop rivet work
Features
- Pack of 10 drills, 1/8" diameter
- Sized to suit a 3mm rivet
- 51mm overall length with a 14mm flute
- M2-HSS with a gold TiN (titanium nitride) coating
- Coating helps dissipate heat and reduces friction and cold welding
- 135 degree split point (crankshaft point), self centring
- Double ended, a cutting end at each end
Key specifications
| Specification | Detail |
|---|---|
| Brand | Saber |
| Model | 8040-1/8T |
| Part number | 8040-1/8T |
| Type | TiN coated HSS double ended panel drill |
| Diameter | 1/8" |
| Rivet diameter | 3mm |
| Flute length | 14mm |
| Overall length | 51mm |
| Pack quantity | 10 |
| Pack type | Hang-sell clam pack |
| Material | M2-HSS (high speed steel) |
| Coating | Gold TiN (titanium nitride), applied by PVD |
| Point | 135 degree split point (crankshaft point) |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Saber 1/8" TiN Coated HSS Double Ended Panel Drill Bit Clam - 10/Pack
SKU: A0207494 | Model: 8040-1/8T
The 8040-1/8T is a hang-sell clam pack of 10 TiN coated HSS double ended panel drills, 1/8" in diameter, for 3mm rivets. Each drill is 51mm long with a 14mm flute.
