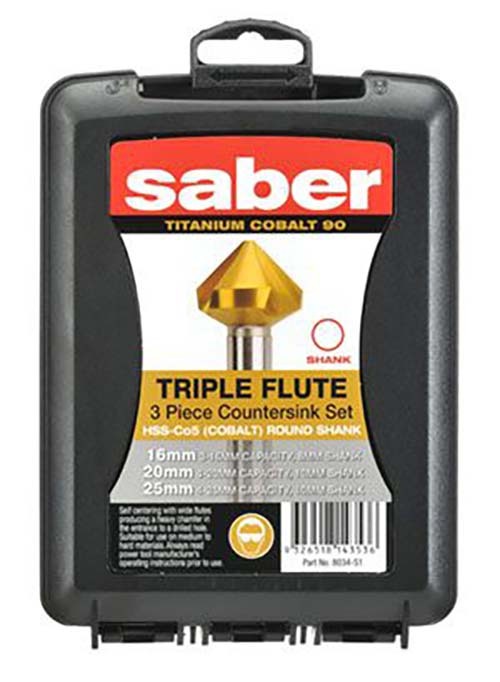

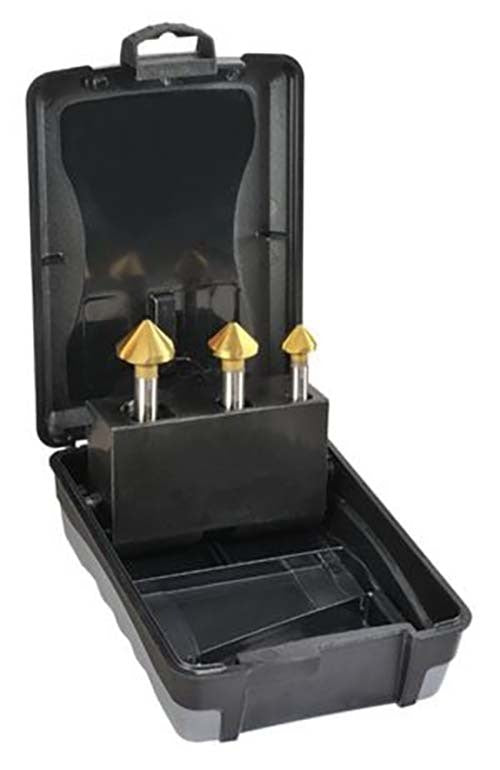

Saber HSS-Co5 TiN Coated Triple Flute Countersink Set - 8034-S1
Available
The Saber 8034-S1 is a set of three triple flute countersinks in 16mm, 20mm and 25mm for cutting a heavy chamfer at the mouth of a drilled hole. They are TiN coated HSS-Co5 (cobalt) for medium to hard materials, so fabricators and maintenance fitters can seat countersunk head screws or lead in a tap with one metric set.
Triple flute means three wide flutes that centre the tool in the hole. HSS-Co5 is the cobalt grade of high speed steel. Each countersink has a 90 degree angle and a round shank, can be resharpened, and the set holds one of each size. For the 10mm size, or a non-cobalt option, see the Saber Essentials 8037-S1 (10, 20 and 31mm).
Where this product is used
- Chamfering drilled holes so countersunk head screws seat properly
- Giving a lead-in for a second machining operation such as tapping
- Countersinking and deburring ferrous and non-ferrous metals
- Cutting in stainless steel and high tensile steel
Features
- Three countersinks in one metric set: 16mm, 20mm and 25mm
- Three wide flutes, self centering, for a heavy chamfer at the entrance to a drilled hole
- Resharpenable, for use on medium to hard materials
- HSS-Co5 (cobalt) is extremely hard and gives longer tool life, especially in stainless steel and high tensile steel
- Gold TiN (titanium nitride) coating helps dissipate heat and reduces friction and cold welding
- Round shanks of 8mm, 10mm and 10mm, with overall lengths of 60mm, 63mm and 67mm
- Bronze (gold oxide) finish is a low temperature temper treatment used on cobalt tools for identification
Key specifications
| Specification | Detail |
|---|---|
| Brand | Saber |
| Part number | 8034-S1 |
| Type | Triple flute countersink set, metric |
| Included angle | 90 degrees |
| Material | HSS-Co5 (cobalt) |
| Coating | Gold TiN (titanium nitride), applied by PVD |
| Set contents | 16, 20 and 25mm countersinks, one of each (8034-16, 8034-20, 8034-25) |
| Pieces in set | 3 |
| Overall length | 60mm, 63mm and 67mm |
| Shank | Round, 8mm, 10mm and 10mm |
Supplied with
- Three countersinks: 16mm, 20mm and 25mm, one of each
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Saber HSS-Co5 TiN Coated Triple Flute Countersink Set - 8034-S1
SKU: A0145389 | Model: 8034-S1
The Saber 8034-S1 set holds one each of the 16mm, 20mm and 25mm triple flute countersinks (8034-16, 8034-20 and 8034-25). They are TiN coated HSS-Co5 (cobalt) with a 90 degree angle, lengths of 60mm, 63mm and 67mm, and round shanks of 8mm, 10mm and 10mm.
