Saber S4 Tap and Die Set - Metric and 1/8" NPT - 8050-S4
Available

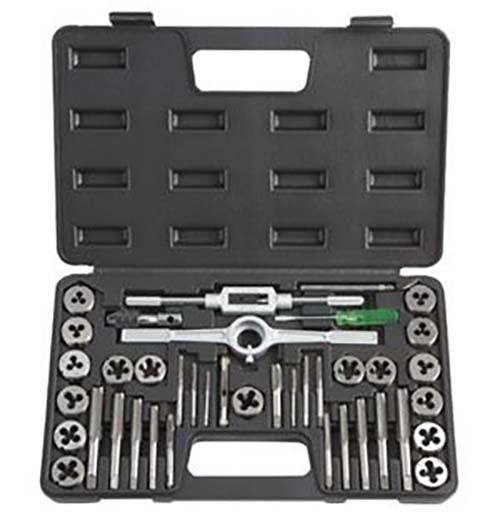

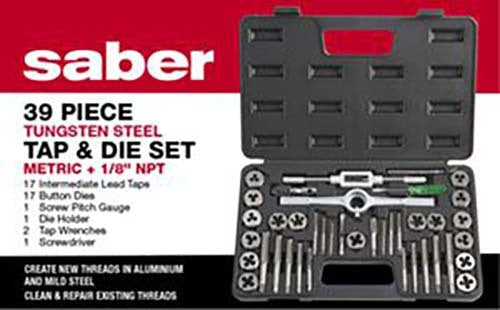

The Saber S4 Tap and Die Set is a 39 piece set for cutting and repairing metric and 1/8" NPT threads, in a blow moulded case. It suits tradespeople, mechanics and maintenance fitters who work on metric threads. The taps and dies are tungsten steel, and they create new threads in aluminium and mild steel and clean and repair existing threads. A tap cuts a thread inside a hole. A die cuts a thread on a rod or bolt. Intermediate lead taps have a tapered start so they begin cutting cleanly, and button dies are round dies that you hold in a die holder.
It has 17 intermediate lead taps and 17 button dies: 16 metric sizes and one 1/8" NPT pipe size. Several metric sizes come with two pitches, for example 6x1.0 and 6x0.75. The case also holds 1 screw pitch gauge, 1 die holder, 2 tap wrenches and a screwdriver. To choose, this set has no inch sizes. For metric and inch together, see the 60 piece S2 (8050-S2). For inch only, see S3 (8050-S3).
Where this product is used
- Cutting new threads in aluminium and mild steel
- Cleaning and repairing damaged threads
- Maintenance and repair jobs that need threads cut or fixed on the spot
- Workshops that work on metric threads and 1/8" NPT pipe threads
Features
- 39 piece set in a blow moulded case
- 17 intermediate lead taps and 17 button dies in tungsten steel
- 16 metric sizes from 3x0.5 to 12x1.75
- Several sizes with two pitches, such as 6x1.0 and 6x0.75, and 8x1.0 and 8x1.25
- One pipe size, NPT1/8"x27
- 1 screw pitch gauge, 1 die holder and 2 tap wrenches
- Screwdriver included
- Creates new threads in aluminium and mild steel
- Cleans and repairs existing threads
Key specifications
| Specification | Detail |
|---|---|
| Brand | Saber |
| Model | S4 Tap and Die Set - Metric and 1/8" NPT |
| Part number | 8050-S4 |
| Type | Tap and die set |
| Total pieces | 39 |
| Taps | 17 intermediate lead taps |
| Dies | 17 button dies |
| Material | Tungsten steel (taps and dies) |
| Metric sizes (16) | 3x0.5, 3x0.6, 4x0.7, 4x0.75, 5x0.8, 5x0.9, 6x1.0, 6x0.75, 7x1.0, 7x0.75, 8x1.0, 8x1.25, 10x1.25, 10x1.5, 12x1.5, 12x1.75 |
| Pipe thread size (1) | NPT1/8"x27 |
| Screw pitch gauge | 1 |
| Die holder | 1 |
| Tap wrenches | 2 |
| Other tools | 1 screwdriver |
| Case | Blow moulded case |
Supplied with
- 39 pieces in a blow moulded case: 17 intermediate lead taps, 17 button dies, 1 screw pitch gauge, 1 die holder, 2 tap wrenches, 1 screwdriver
