Saber S5 Drill and Tap Set - Metric Coarse - 8050-S5
Available

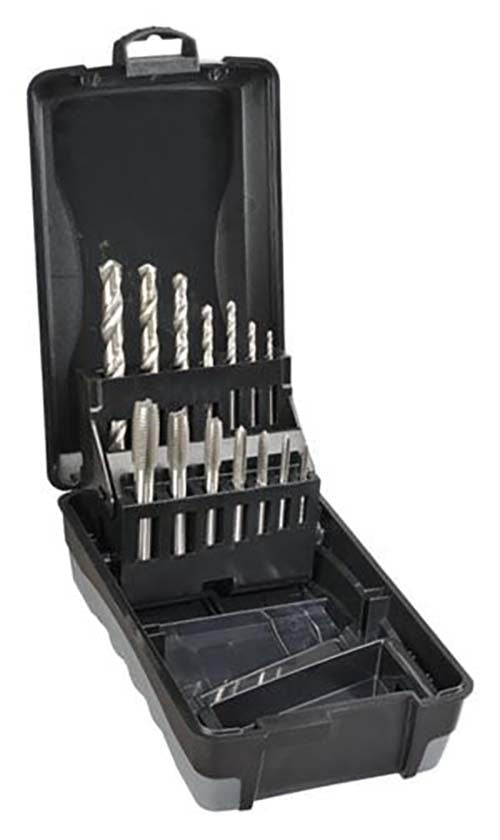

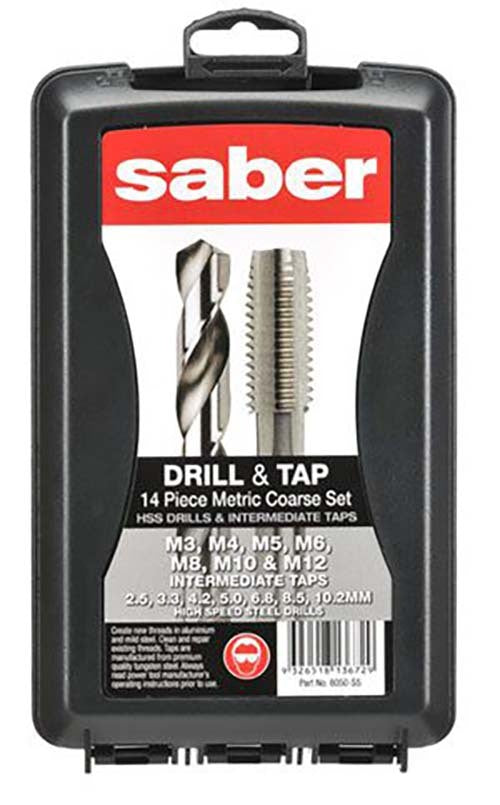

The Saber S5 Drill and Tap Set is a 14 piece metric coarse set with 7 taps and 7 drills in a metal case. Tradespeople, mechanics and maintenance fitters use a set like this to drill a hole and then tap a thread in it. The taps are tungsten steel and the drills are HSS, and the set creates new threads in aluminium and mild steel. A tap cuts a thread inside a hole. Intermediate lead taps have a tapered start so they begin cutting cleanly.
The 7 intermediate lead taps are M12x1.75, M10x1.50, M8x1.25, M6x1.00, M5x0.80, M4x0.70 and M3x0.50. The 7 HSS drills are 2.5mm, 3.3mm, 4.2mm, 5.0mm, 6.8mm, 8.50mm and 10.20mm. To choose, this set has no dies and no wrench. For taps and dies together, see the S1 to S4 sets, for example the 39 piece S4 (8050-S4) for metric threads.
Where this product is used
- Drilling and tapping metric coarse threads in aluminium and mild steel
- Cutting new threads on maintenance and repair jobs
- Tapping holes from M3 up to M12
Features
- 14 piece set in a metal case
- 7 intermediate lead taps in tungsten steel
- 7 HSS drills
- Metric coarse taps: M12x1.75, M10x1.50, M8x1.25, M6x1.00, M5x0.80, M4x0.70, M3x0.50
- Drills: 2.5mm, 3.3mm, 4.2mm, 5.0mm, 6.8mm, 8.50mm and 10.20mm
- Creates new threads in aluminium and mild steel
Key specifications
| Specification | Detail |
|---|---|
| Brand | Saber |
| Model | S5 Drill and Tap Set - Metric Coarse |
| Part number | 8050-S5 |
| Type | Drill and tap set |
| Total pieces | 14 |
| Taps | 7 intermediate lead taps |
| Tap material | Tungsten steel |
| Tap sizes | M12x1.75, M10x1.50, M8x1.25, M6x1.00, M5x0.80, M4x0.70, M3x0.50 |
| Drills | 7 HSS drills |
| Drill sizes | 2.5mm, 3.3mm, 4.2mm, 5.0mm, 6.8mm, 8.50mm, 10.20mm |
| Case | Metal case |
Supplied with
- 14 pieces in a metal case: 7 intermediate lead taps and 7 HSS drills
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Saber S5 Drill and Tap Set - Metric Coarse - 8050-S5
SKU: A0145394 | Model: 8050-S5
The 8050-S5 is a 14 piece metric coarse drill and tap set: 7 intermediate lead taps from M3x0.50 to M12x1.75 and 7 HSS drills from 2.5mm to 10.20mm, in a metal case. It has no dies.
