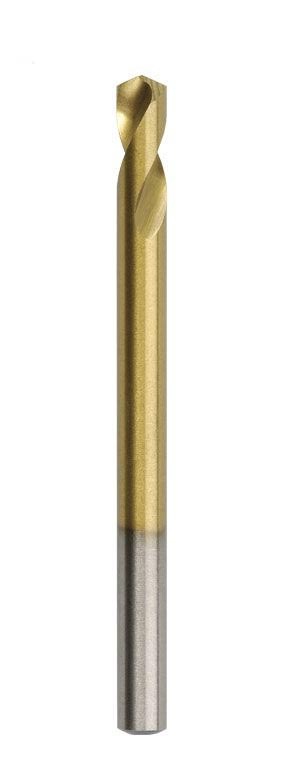

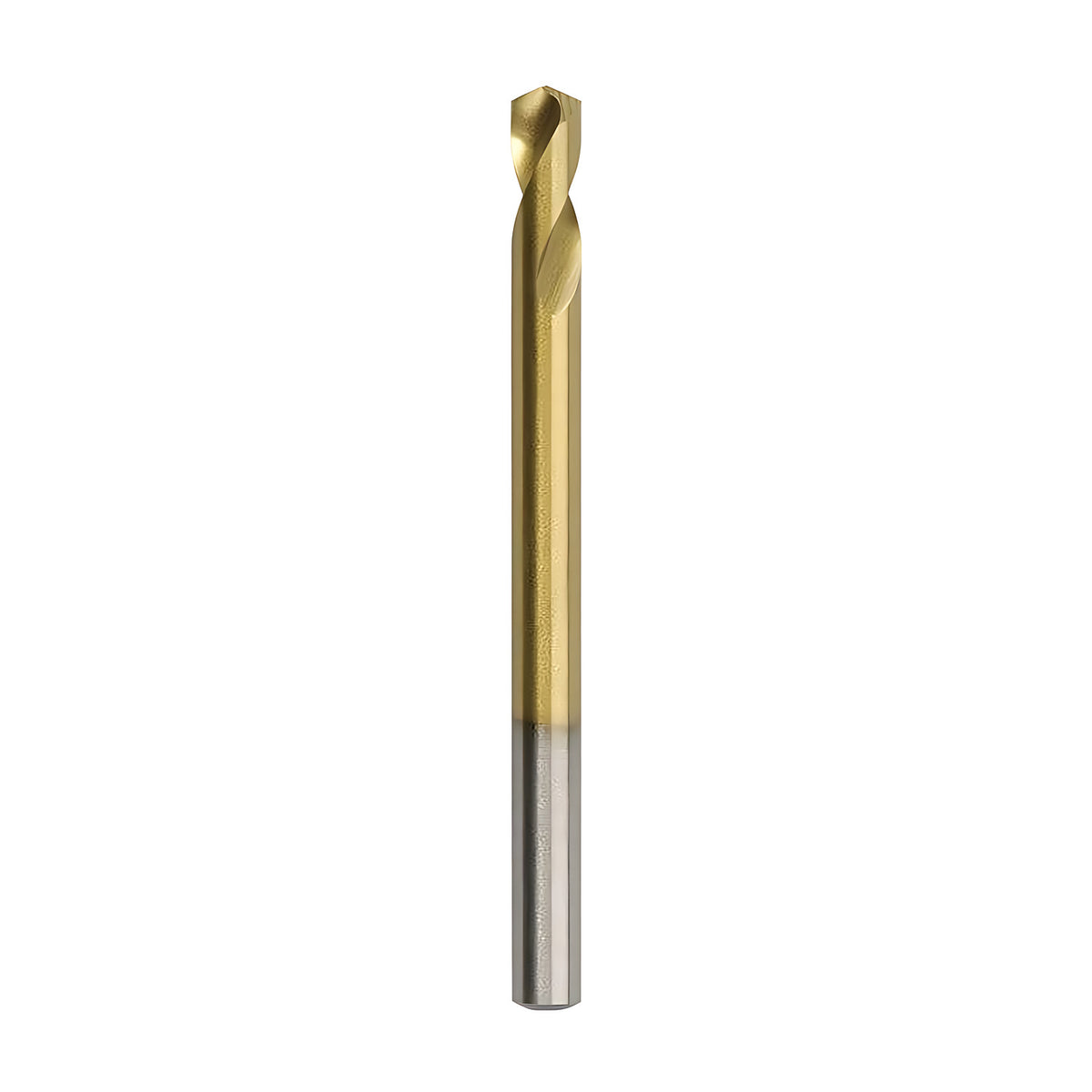

Saber 8042-11 11 Gauge TiN Panel Drill, Pack of 10
The price shown is for the pack.
Available
Saber 8042 single ended panel drills come as a pack of 10 in three sizes: 11 gauge (4.85mm), 20 gauge (4.09mm) and 30 gauge (3.26mm). The sizes suit 3/16", 5/32" and 1/8" rivets. They suit panel beaters, fabricators and maintenance fitters drilling rivet holes.
A panel drill is a short drill, commonly used for rivet holes. Single ended means one cutting end. The gold TiN (titanium nitride) coating is applied by PVD. It helps dissipate heat and reduces friction and cold welding, so higher speeds and feeds are possible and tool life is greatly increased. The 135 degree split point centres itself and reduces the need for end thrust, and it performs better in harder steels. Pick the gauge to match your rivet. If you want a cutting end at each end of the drill, the double ended 8040-11 is the same size.
Where this product is used
- Drilling rivet holes to suit 3/16", 5/32" and 1/8" rivets
- Panel and sheet fabrication where a short drill is needed
- Bodyshop and workshop rivet work
Features
- Three sizes: 11, 20 and 30 gauge
- M2-HSS with a gold TiN (titanium nitride) coating
- Coating helps dissipate heat and reduces friction and cold welding
- 135 degree split point (crankshaft point), self centring
- Single ended
- Each size is sold as a pack of 10
- Each gauge is sized to suit a standard rivet diameter
Key specifications
| Specification | Detail |
|---|---|
| Brand | Saber |
| Model | 8042-11, 8042-20, 8042-30 |
| Type | TiN coated HSS single ended panel drill |
| Material | M2-HSS (high speed steel) |
| Coating | Gold TiN (titanium nitride), applied by PVD |
| Point | 135 degree split point (crankshaft point) |
| Pack quantity | 10 |
| 11 gauge (8042-11) | 4.85mm diameter, 62mm long, 17mm flute, 3/16" rivets |
| 20 gauge (8042-20) | 4.09mm diameter, 55mm long, 14mm flute, 5/32" rivets |
| 30 gauge (8042-30) | 3.26mm diameter, 51mm long, 14mm flute, 1/8" rivets |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 11 | 8042-11 | A0207407 |
| 20 | 8042-20 | A0207408 |
| 30 | 8042-30 | A0207409 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Saber TiN Coated HSS Single Ended Panel Drill Bit: 11
SKU: A0207407 | Model: 8042-11
The 8042-11 is the 11 gauge (4.85mm) size, a TiN coated HSS single ended panel drill sized for 3/16" rivets. It is 62mm long with a 17mm flute and comes as a pack of 10.
