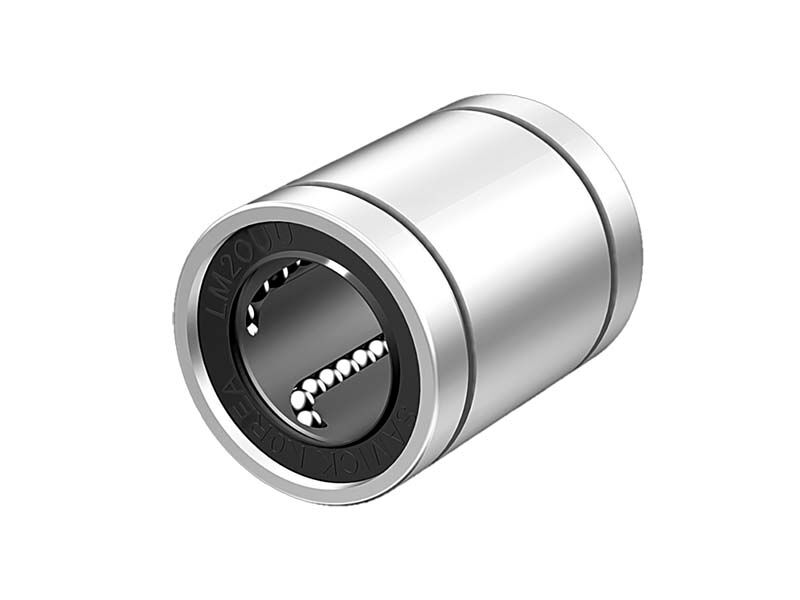

Samick LM closed linear bushing, Nominal Shaft Diameter 6mm
Regular price
$19.86
Sale price
$19.86
Regular price
Inc. GST
Available
Samick LM closed linear bushings are the Asian standard (LM) series for shaft diameters from 5mm to 80mm with basic dynamic load ratings up to 10130N, and providing low friction on high-speed movement.
Where this product is used
- Linear motion systems on hardened shafts
- Machinery, automation and positioning equipment
Features
- Provides low friction on high-speed movement
- Resin retainer as standard, with a steel retainer (high temperature) option under a separate part number
- Shaft hardness of HRC 58 to 64 is recommended
- Grease lubrication, with lithium soap JIS No. 2 grease recommended
- Not suitable for rotational motion, so apply load along the shaft only
- Where moment loads apply, use two or more bushings on one shaft with enough distance between them
Key specifications
| Specification | Detail |
|---|---|
| Brand | Samick |
| Series | LM closed linear bushing |
| Standard | Asian standard |
| Shaft diameters | 6mm to 80mm |

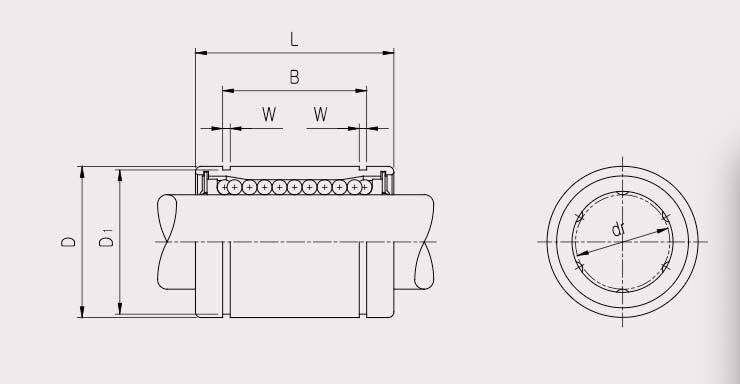

| Outer diameter (D) | 12mm to 120mm |
| Length (L) | 19mm to 140mm |
| Dynamic load rating (C) | 200N to 10130N |
| Static load rating (Co) | 260N to 12000N |
| Ball rows | 4 to 6 |
| Weight | 8g to 4100g |
| Seal | Both sides (UU) |
| Outer sleeve | Standard SUJ2 |
| Recommended fit | A housing bore of H7 with a shaft tolerance of f6 or g6 |
| Load direction | Along the shaft only, not rotational |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 6 | A0210259 | |
| 8 | A0210260 | |
| 10 | A0210261 | |
| 12 | A0210262 | |
| 13 | A0210263 | |
| 16 | A0210264 | |
| 20 | A0210265 | |
| 25 | A0210266 | |
| 30 | A0210267 | |
| 35 | A0210268 | |
| 40 | A0210269 | |
| 50 | A0210270 | |
| 60 | A0210271 | |
| 80 | A0210272 |
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Samick Closed Linear Bushing (LM): 6
SKU: A0210259 | Model: LM6UU-SAMICK
Samick LM6UU is the 6mm shaft size of the LM closed linear bushing. The body is 12mm in outer diameter and 19mm long, with a basic dynamic load rating of 200N and a basic static load rating of 260N, and it weighs 8g with a resin retainer. Recommended fit for LM shafts is a housing bore of H7 with a shaft tolerance of f6 or g6.
