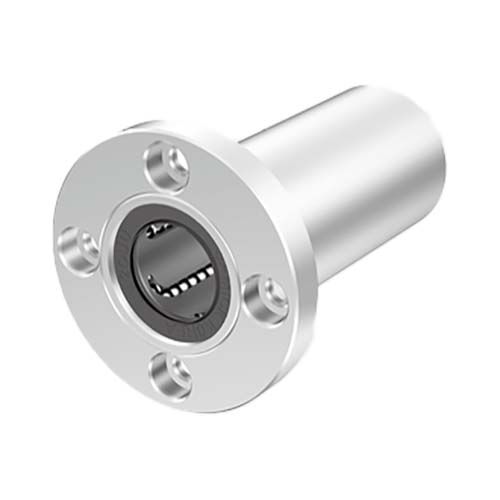

Samick LMF8LUU 8mm Flanged Long Linear | AIMS Industrial

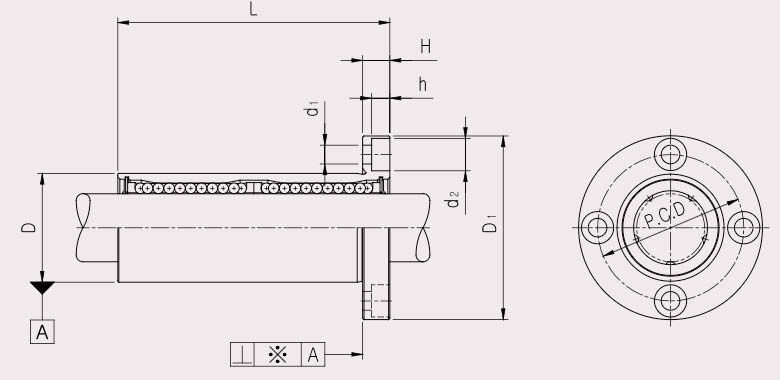

Samick Flanged Long Linear Bushing (LMF_L)

• LMF_L Flanged Long Linear Bushing.
• Both side seal.
• Asian standard.

Note:

• Dynamic load rating is based on the nominal life of 50㎞
• Based on the weight of resin retainer
• 1N ‰’ 0.102kgf
• Steel retainer available from LMF06L to LMF30L only

Interchangeability

• The Linear Bushing and LM shaft are interchangeable with each other, so they can be used in combination freely.

Low Noise

• The standard type contains a retainer integral-molded with resin to prevent the balls from falling, so lownoise smooth operation is possible.

Wide Array of Types

• A wide array of types are available, such as standard type, clearance-adjustable type, open type, long type, flange type, Fitted flange type, center flange type and LM case unit, allowing the user to select a type that meets the intended use.
