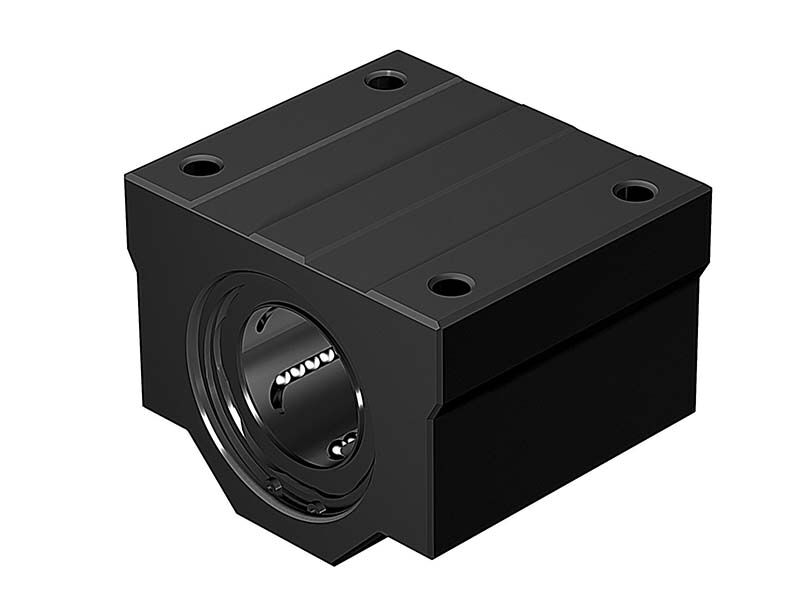

Samick SCE aluminium case unit, Nominal Shaft Diameter 16mm
Regular price
$82.09
Sale price
$82.09
Regular price
Inc. GST
Available
Samick SCE units combine an aluminium housing with a European standard LME linear bushing, which is a high-precision, lightweight housing that does not deform within reasonable load.
Where this product is used
- Linear motion where a housing and linear bushing are needed as one bolt-down unit
- Applications needing a lightweight aluminium housing
Features
- Aluminium housing with high precision and light weight
- Housing does not deform within reasonable load
- Minimised surface scratch on the shaft
- Shaft hardness of HRC 58 to 64 is recommended
- Grease lubrication, with lithium soap JIS No. 2 grease recommended
- Not suitable for rotational motion, so apply load along the shaft only
- Where moment loads apply, use two or more bushings on one shaft with enough distance between them
Key specifications
| Specification | Detail |
|---|---|
| Brand | Samick |
| Series | SCE aluminium case unit |
| Standard | European standard |

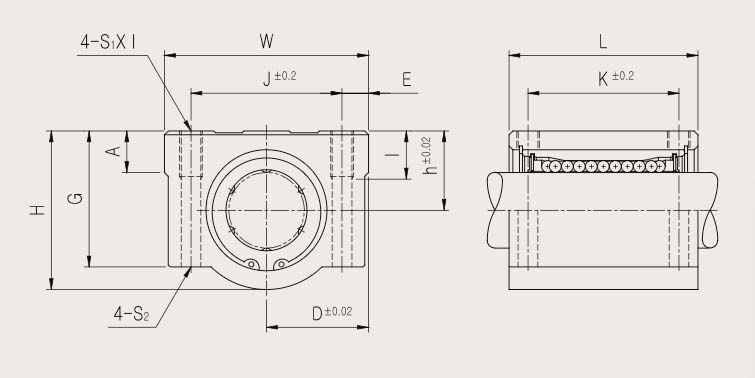

| Shaft diameters | 16, 25, 30 and 50mm |
| Overall width (W) | 50mm to 122mm |
| Overall height (H) | 38.5mm to 102mm |
| Dynamic load rating (C) | 770N to 3820N |
| Static load rating (Co) | 1170N to 7930N |
| Weight | 180g to 2950g |
| Load direction | Along the shaft only, not rotational |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 16 | A0210253 | |
| 25 | A0210254 | |
| 30 | A0210255 | |
| 50 | A0210256 |
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Samick Linear Bushing - SCE Aluminium Case Unit: 16
SKU: A0210253 | Model: SCE16UU-SAMICK
Samick SCE16UU is the 16mm shaft size of the SCE aluminium case unit, fitted with LME16UU. Its overall housing is 50mm wide by 38.5mm high and 44mm long, with a centre height of 19mm.
