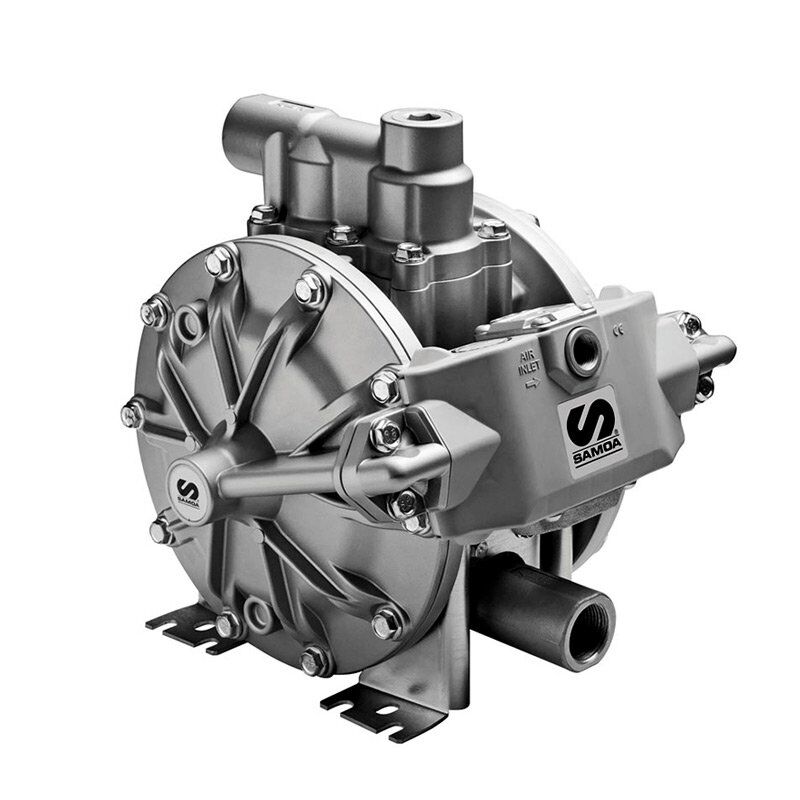

Samoa Air Operated Diaphragm Pump
- Ideal for pumping oil, waste oil, diesel and antifreeze and other compatible fluids
- Flow rates of up to 200L/min
- Operating pressure range from 30psi (2bar) to 120psi (8bar)
- Solids in suspension maximum size of 6mm
- 1" BSP(f) inlet and outlet connections
- 3/8" NPSM(f) air inlet connection
- Maximum dry suction lift of 5m, wet suction lift of 8m
- Aluminium pump body and acetal balls
- NBR diaphragms
- Stainless steel wetted parts
- Frictionless pivot air valve
- Orientable inlet and outlet ports
- Footprint allows direct replacement of other pump brands. eg. Graco 1050
- Exclusive Directflo® technology
- Minimal pulsation and vibration
- Quiet operation
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Samoa 1" Air Operated Diaphragm Pump 555030
Samoa 1" Air Operated Diaphragm Pump 555030
SKU: A0143959
Type: Diaphragm Pump
- Wide Range
- Reliable Services
- Proven Trust
Available
The Samoa 1" Air Operated Diaphragm Pump 555030 by Samoa is a Diaphragm Pump with an aluminium body. It offers flow rates of up to 200L/min and is suitable for pumping oil.
