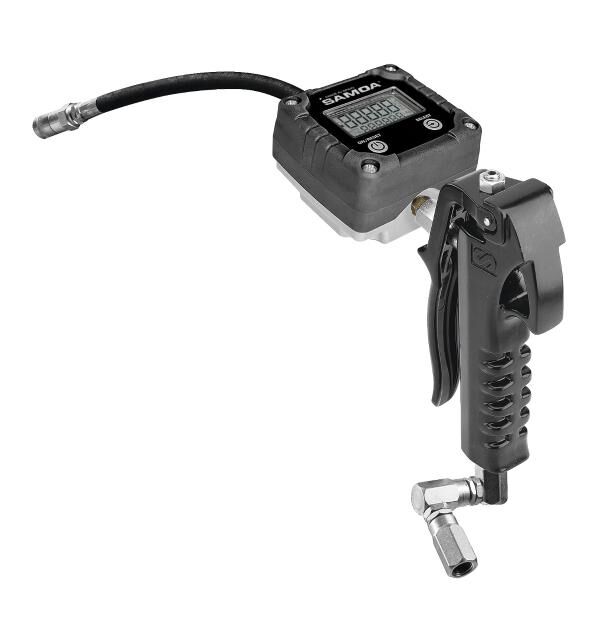

Samoa High Pressure Grease Digital Metered Control Valve Assembly 415012

Samoa High Pressure Grease Digital Metered Control Valve

• High-pressure grease meter guns with ergonomic body and trigger designed to reduce operator hand fatigue.
• Manufactured in aluminium with a steel insert for high pressure.
• Flexible outlet with 3 jaw connector and Z-swivel.
• High-pressure oval gear grease meter with digital display, 1/8" inlet/outlet connection.
• Works with up to NLGI-2 grease.
• Shock proof, clear to read, increased durability, easy to replace batteries and calibration function.
• Aluminium body, Acetal oval gear technology and strengthened PC cover.
• Works with two 1.55 V AAA alkaline batteries.

Technical Data

• Compatible fuids: Grease
• Maximum free fow delivery: 2.5 kg/min (5.5 lb/min)
• Accuracy: 0.02
• Maximum outlet pressure: 500 bar (7250 psi)
• Operating temperature range: -10 - 55 ⁰C (14-131 ⁰F)
• Inlet size: 1/4"
• Fluid inlet: 1/4" BSP (F)
• Outlet type: Z-swivel, fexible tube, grease connector
• Meter: Digital
• Metric: Litres, Gallons, Pints, Quarts
• Wetted materials: Aluminium, Acetal, Nbr Stainless Steel, Zinc Plated Steel
• Weight 1.5 kg (3 lb)
