Sando SDSLDG/8-24SF Soft Face Steel Sledge Hammer, 3.6 kg, 610 mm Handle
Available
Sando soft face steel sledge hammers have a face hardened to below 25 HRC, which Sando identifies with a blue head (manufacturer-stated). Sando describes the handle as a series of high tensile spring steel rods with very strong, abrasion-resistant rubber moulded around them under a high compression factor, and says the head is vulcanised to the rubber during moulding and secured to the rods by a positive locking plate (manufacturer-stated).
This listing covers six weights from 1.8 kg (4 lb) to 6.3 kg (14 lb): SDSLDG/4-12SF on a 305 mm (12 in) handle, SDSLDG/8-24SF on a 610 mm (24 in) handle, and four heads of 3.6 to 6.3 kg on a 762 mm (30 in) handle (manufacturer-stated). The rubber injected into the eye of the head inhibits shock transfer into the handle (manufacturer-stated).
Where this product is used
- Industries Sando lists for its soft face steel sledge hammers: mining, stone crushing, demolition, building and construction, steel fixing and agriculture (manufacturer-stated).
- Also listed by Sando: light engineering, heavy engineering, fire and rescue, railroads and landscaping (manufacturer-stated).
Features
- Steel sledge head with a soft face hardened to below 25 HRC (manufacturer-stated)
- Blue head identifies a soft face (face hardened to below 25 HRC) at a glance (manufacturer-stated)
- Thickened boss further protects the hammer against overstrikes (manufacturer-stated)
- Handle core of high tensile steel rods moulded in abrasion-resistant rubber, so the handle is unbreakable (manufacturer-stated)
- Positive locking plate holds the head to the handle so the head will not separate (manufacturer-stated)
- Rubber injected into the eye of the head inhibits shock transfer into the handle, reducing fatigue and the risk of injury (manufacturer-stated)
- Head conforms to ASME/ANSI, BS876 and ISO15601 specifications (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Head type | Soft face steel sledge hammer |
| Face hardness | Below 25 HRC |
| Handle | Rubber-moulded over high tensile steel rods, 4 or 6 rods |
| Weights in this listing | 1.8 kg (4 lb) to 6.3 kg (14 lb) |
| Handle lengths | 305 mm (12 in), 610 mm (24 in) and 762 mm (30 in) |
Key specifications
| Sando part number | Weight | Handle length | Rods in handle |
|---|---|---|---|

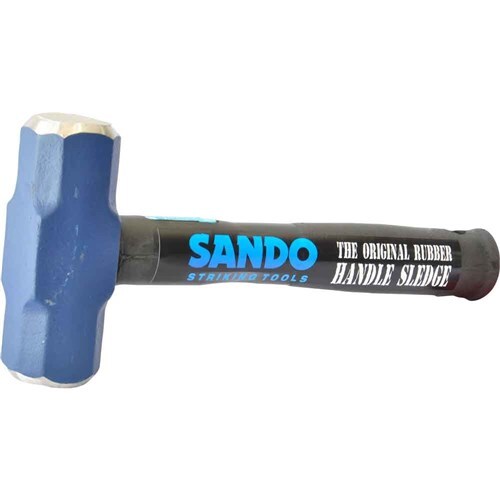

| SDSLDG/4-12SF | 1.8 kg (4 lb) | 305 mm (12 in) | 4 |
| SDSLDG/8-24SF | 3.6 kg (8 lb) | 610 mm (24 in) | 4 |

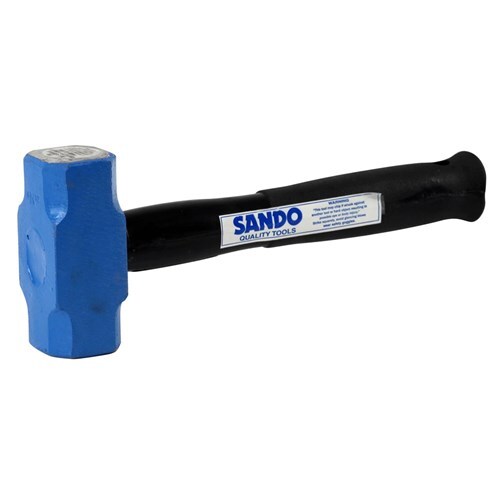

| SDSLDG/8-30SF | 3.6 kg (8 lb) | 762 mm (30 in) | 6 |

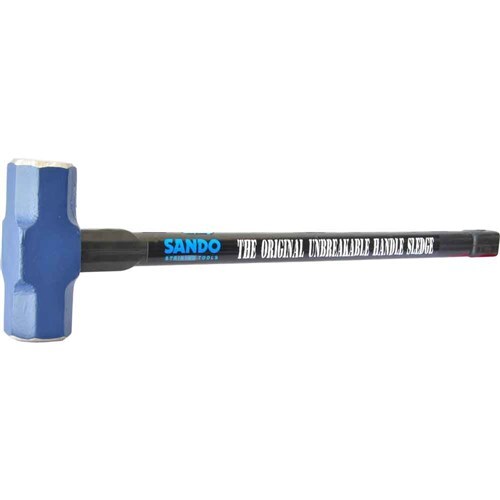

| SDSLDG/10-30SF | 4.5 kg (10 lb) | 762 mm (30 in) | 6 |
| SDSLDG/12-30SF | 5.5 kg (12 lb) | 762 mm (30 in) | 6 |
| SDSLDG/14-30SF | 6.3 kg (14 lb) | 762 mm (30 in) | 6 |
Weights, handle lengths and rod counts are taken from the Sando product brochure (2022) part number table. The brochure notes that product specifications can change without notice, so confirm critical dimensions before ordering.
Selecting the right option
The six part numbers differ by head weight and handle length. Sando fits four rods in the 305 mm (12 in) and 610 mm (24 in) handles and six rods in the 762 mm (30 in) handles. SDSLDG/8-24SF and SDSLDG/8-30SF share a 3.6 kg (8 lb) head with the shorter and longer handle. If you need the harder 50-58 HRC face, see the hard face sledge hammers instead.
Related products
Other Sando sledge hammers: Sando Hard Face Sledge Hammer With Unbreakable Handle, Sando Sledge Hammer Fully Hardened Steel (50-58 HRC) and Sando Sledge Hammer Copper Head.
