SDTZ Studded Rod End Ball Joint, Female Thread M5 x 0.8
Available

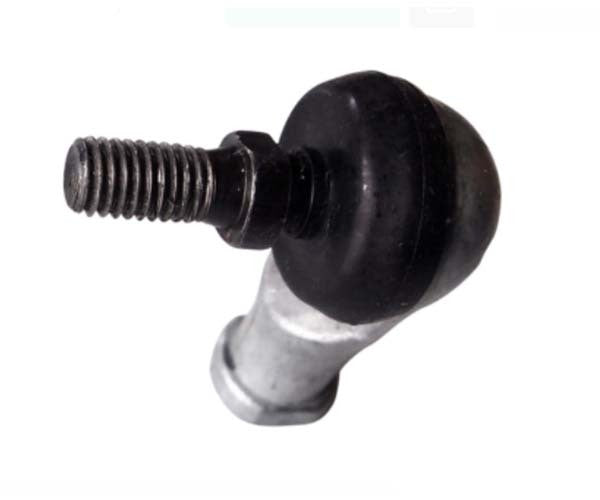

This is the SDTZ Studded Rod End Ball Joint, Metric Female Thread, Right-Hand, M5 to M12.
The SDTZ studded rod end is a ball joint with a threaded ball stud and a female-threaded housing. The ball tilts up to 40° in the housing, so the rod end takes up misalignment at the pivot point of a linkage. This one has right-hand metric threads, from M5 to M12.
The rod end is sealed with a rubber seal and is lubricated for life, with zinc alloy and steel contact surfaces.
Where this product is used
- Control linkages and push-pull rods
- Actuator and cylinder connections
- Adjustable-length linkages
- Levers and pivots where the joint must tilt
- General machinery linkages
Features
- Ball joint with a threaded ball stud and a female-threaded housing
- Maximum tilt angle 40°
- Right-hand metric thread
- 7 sizes from M5 to M12
- Rubber sealed and lubricated for life
- Zinc alloy and steel contact surfaces
- Static load rating (Cs) from 6.47 to 26.7 kN
Key specifications
| Specification | Detail |
|---|---|
| Brand | SDTZ |
| Product | Studded rod end (ball joint) |
| Thread | Metric, right-hand |
| Housing thread | Female |
| Ball stud thread | Male |
| Sizes | M5 x 0.8, M6 x 1, M8 x 1.25, M10 x 1.5, M10 x 1.25, M12 x 1.75, M12 x 1.25 |
| Maximum tilt angle | 40° |
| Seal | Rubber seal |
| Lubrication | Lubricated for life |
| Contact surface | Zinc alloy and steel |
Sizes and ratings
| Model | Thread | Overall length L (mm) | Housing diameter D (mm) | Ball diameter (mm) | Max tilt angle | Static load Cs (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|
| BL5D/SDTZ | M5 x 0.8 | 34.5 | 15 | 9.53 | 40° | 6.47 | 12 |
| BL6D/SDTZ | M6 x 1 | 38 | 16 | 11.11 | 40° | 9.9 | 26 |
| BL8D/SDTZ | M8 x 1.25 | 45.5 | 19 | 12.7 | 40° | 12.5 | 49 |
| BL10D/SDTZ | M10 x 1.25 | 55.5 | 25 | 15.88 | 40° | 18.3 | 87 |
| BL10BD/SDTZ | M10 x 1.5 | 55.5 | 25 | 15.88 | 40° | 18.3 | 90 |
| BL12D/SDTZ | M12 x 1.25 | 64.5 | 29 | 19.05 | 40° | 26.7 | 143 |
| BL12BD/SDTZ | M12 x 1.75 | 64.5 | 29 | 19.05 | 40° | 26.7 | 148 |
Fitting and use
Match the thread size, pitch and hand of the rod end to the mating part before fitting. Keep the ball free to tilt through its 40° range.
The rod end is sealed and lubricated for life, so it needs no re-greasing in service.
Choosing the right option
Choose the thread size and pitch to match the mating part. M10 and M12 each come in a coarse and a fine pitch: BL10BD is M10 x 1.5 and BL10D is M10 x 1.25, and BL12BD is M12 x 1.75 and BL12D is M12 x 1.25.
Check the static load rating against the working load of the linkage.
| Option | Part number | SKU |
|---|---|---|
| M5 x 0.8 | BL5D/SDTZ | A0170953 |
| M6 x 1.0 | BL6D/SDTZ | A0170951 |
| M8 x 1.25 | BL8D/SDTZ | A0170952 |
| M10 x 1.5 | BL10BD/SDTZ | A0170947 |
| M10 x 1.25 | BL10D/SDTZ | A0170948 |
| M12 x 1.75 | BL12BD/SDTZ | A0170949 |
| M12 x 1.25 | BL12D/SDTZ | A0170950 |
Product details

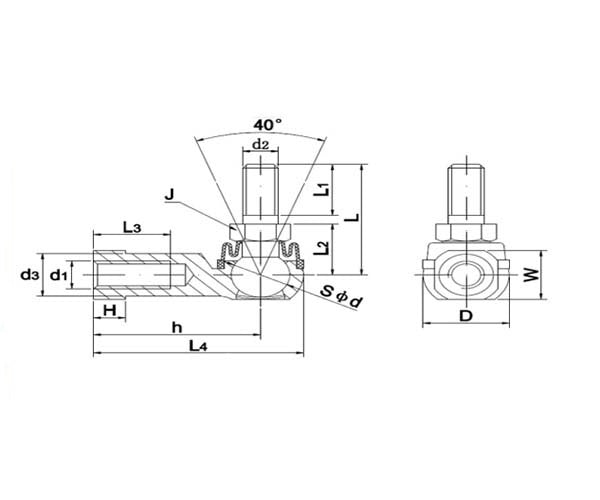

| Model | BL5D/SDTZ |
|---|---|
| Part number | BL5D/SDTZ |
| Product | SDTZ Studded Rod End, Metric Female Thread, Right-Hand |
| Model | BL5D/SDTZ |
| Thread Size | M5 x 0.8 |
| D1 (6H) Housing Thread | M5 x 0.8 |
| D2 (6g) Stud Thread | M5 x 0.8 |
| Overall Length L (mm) | 34.5 |
| D (mm) | 15 |
| D3 (mm) | 9 |
| H (mm) | 4 |
| J (mm) | 8 |
| L1 (min) (mm) | 8 |
| L2 (mm) | 10 |
| L3 (min) (mm) | 15 |
