Seco 3.4 x 33mm Parting Off 150.10A-15 HSS Blade R150.10A-15-4
Available
This Seco R150.10A-15-4 is the 3.4 x 33mm Parting Off 150.10A-15 HSS Blade.
Key Specifications
| Additional Details | Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade. This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot. 150.10 is also available in combination with Jetstream Tooling® Duo, a high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces. |
|---|

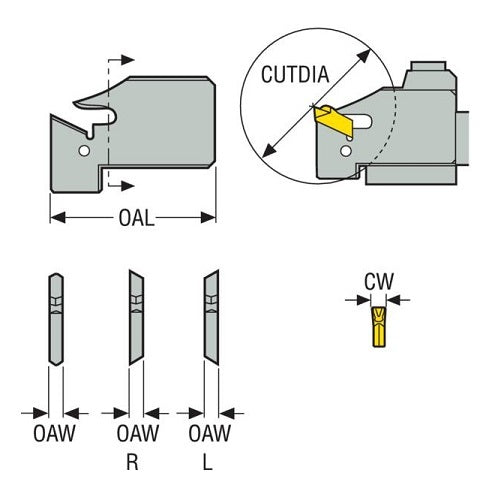

Dimensions and ratings
| Designation | R150.10A-15-4 |
|---|---|
| Functional Height (HF) mm | 15.5 |
| Direction Of Cutting (hand) | Right |
| Cutting Width (CW) mm | 4 |
| Connection Text Machine Side (CTMS) | Blade-15 |
| Shank Type | Blade |
| Tool Cutting Edge Angle (KAPR) | 90.0 deg |
| Overall Width X Length (mm) | 3.4 x 33 |
| Connection Text Workpiece Side (ctws) | 150.10-4 |
| Cutting Depth Maximum (cdx) mm | 19 |
| Work Piece Parting Diameter Maximum (CUTDIA) mm | 38 |
| Version (internal/external/both) | External |
| Net Weight (kg) | 0.014 |
