Seco 2.5mm CP600 Disc Mill Parting Off | AIMS Industrial

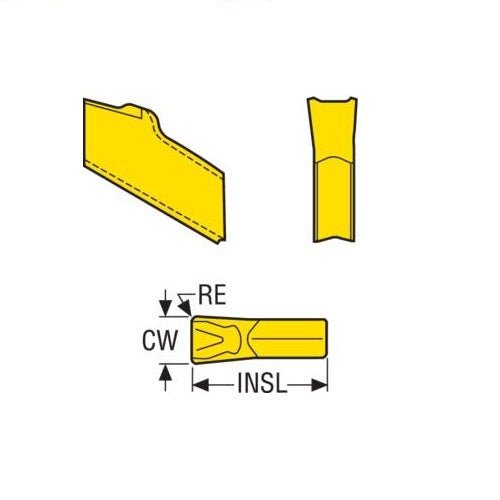

***Illustrations shown may vary from actual product***

335.10 Disc Mill Parting Off Carbide Insert (CP500/CP600/T25M - 12 Chipbreaker)

• Inserts in neutral version N are first choice since they normally achieve increased tool life.
• Inserts in neutral version N better chip control, high surface quality and allow higher cutting data compared to the handed (R-/L-) version.
• Carbide PVD and Carbide CVD.

12 Chipbreaker

• First choice for steel at low feed rates.
• 24° positive cutting rake angle.
• Excellent chipbreaking.

All About Disc Mill:

• Our extensive range of standard disc milling cutters, insert radii, geometry and grades tackles any challenges brought by disc milling applications.
• With the widest range of inserts, cutter bodies, and attachment types in the industry, we are your single source tooling supplier for sawing, T-slotting, slotting, deep slotting, dual-radius slotting, back facing, circular or helical interpolation, square shoulder milling, circlip grooving and copy milling.
• And our products are developed with extensive research to ensure they meet the needs to today’s materials and machining processes.
• While our full line of standard disc milling cutters covers most applications, we also offer special design and manufacturing solutions for industry-specific needs.
• This includes cutters for gear machining in the power generation industry, automotive crankshaft milling, large diameters cutter solutions for many typical aerospace components, cutters for oil and gas pipe sawing and cutters with round inserts for hip prosthesis.

All about 335.10 - Width Of Cut 2.25-4.1mm:

• For slim slotting and cut-off operations.
• Self-clamping insert design.
• Width of cut 2.25-4.1 mm (.088 - .161 inch)
• Cutter range diameter 40-315 mm (1.5 - 12 inch).
• Internal coolant.
