Seco LCMF160404-0400-FT Turning Insert TGP25
Available

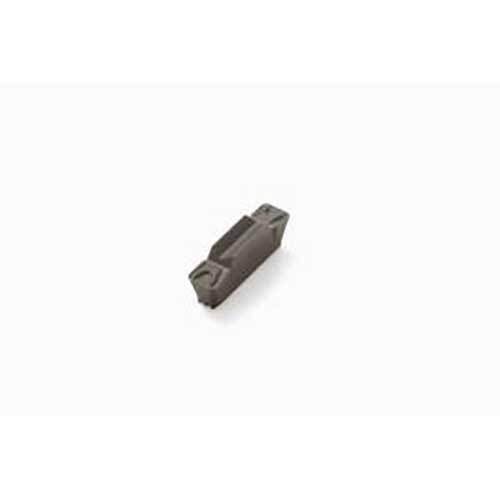

Genuine Seco rectangular turning insert, Grade TGP25.
Key Specifications
| Grade | TGP25 |
|---|---|
| Substrate / Coating | Carbide CVD |

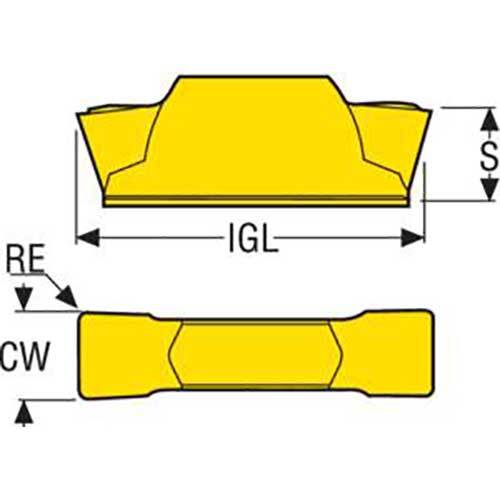

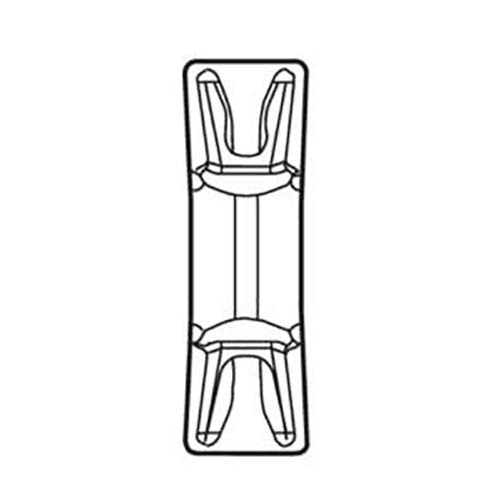

| Insert Shape | rectangular (ISO shape code L) |
| Insert Details | Seat Size 16, for general machining. F Type, double-ended with chipbreaker. FT insert type code, chipbreaker for fine turning, and for deep grooving. |
About Grade TGP25
Carbide CVD. A wear-resistant Duratomic® CVD-coated grade intended for grooving, turning, and profiling of steels at high cutting speeds. Ti(C,N) + Al2O3
About Seco Turning Inserts
Multi-Directional Turning and Grooving The Seco MDT (Multi-Directional Turning) is universally suitable for a variety of applications including grooving, profiling, turning, parting-off, and threading. The unique Secoloc™ clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles, and grooves. Replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method – Secoloc™. Combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the tool holder for superb stability. The relatively long insert also increases stability. MDT is available also in combination with Jetstream Tooling®, a high-pressure cooling system directing coolant supply to the cutting edge.
