Octomill Insert Size 05 Grade MK1500 X | AIMS Industrial

***Illustrations shown may vary from actual product***

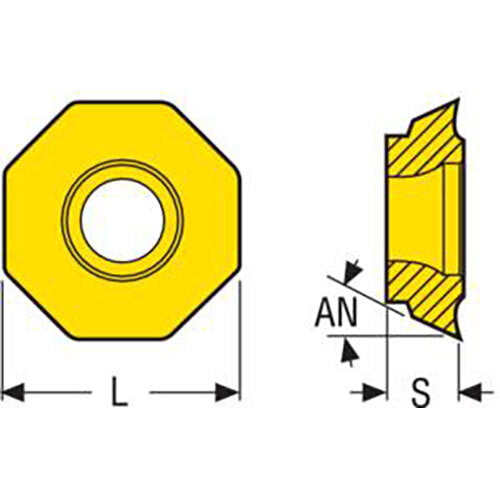

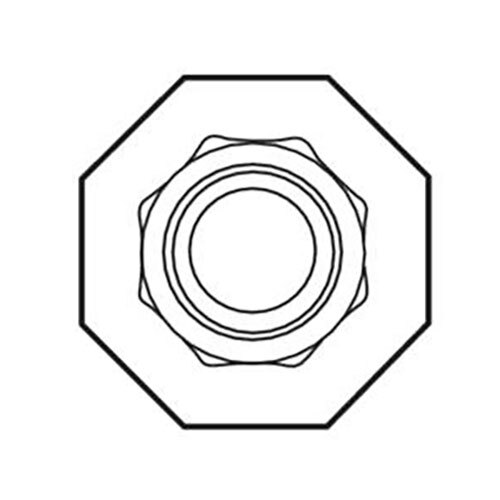

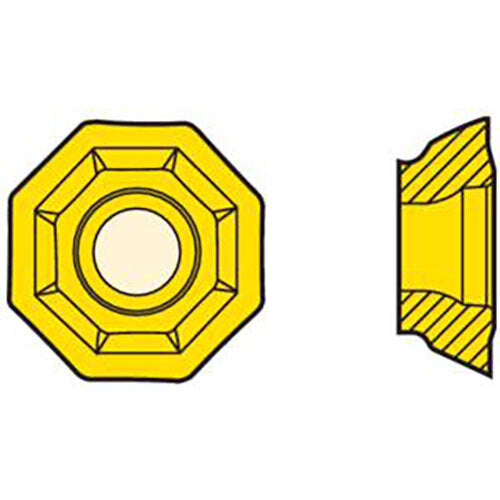

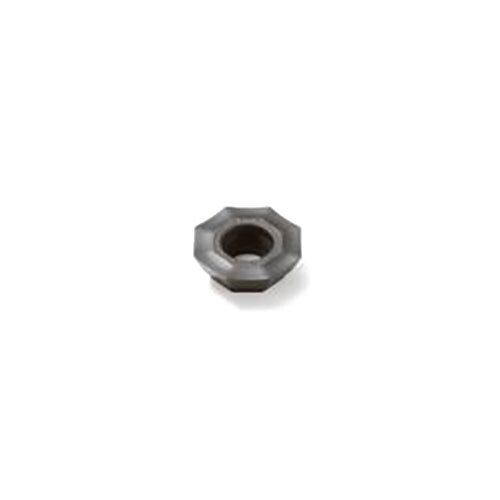

Seco Octomill Face Milling Insert Size 05 3.77 x 12.7 x 12.7mm Neutral Grade MK1500 X Type M08 Designation OFEX05T305TN-M08,MK1500 Pack of 10

Octomill Insert Size 05 Grade MK1500 X Type (OFEX05T3-M08)

• Medium machining condition.
• OFEX05T3 Insert Seat Size Code (SSC).
• X type.

MK1500 Grade

• CVD-coated grade based on Duratomic™ coating.
• Basic grade for milling cast iron and nodular cast iron, with or without coolant.
• Ti (C, N) – Al2O3.

About Seco Octomill Insert Size 05

• Cutter range 32-315 mm (1.25-5 inch).
• Max depth of cut 3.5 mm (0.138 inches).
• Recommended depth of cut 2.5 mm (0.098 inch).
• 8 cutting edges, single-sided inserts.
