Octomill Insert Size 07 Grade F15M R Type | AIMS Industrial

***Illustrations shown may vary from actual product***

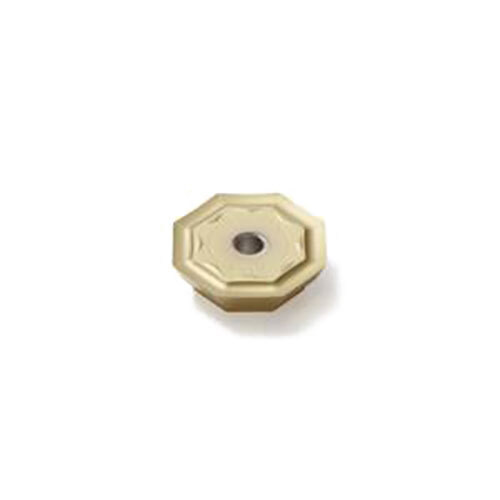

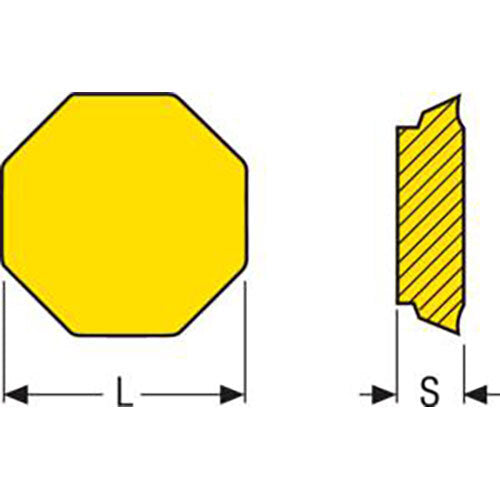

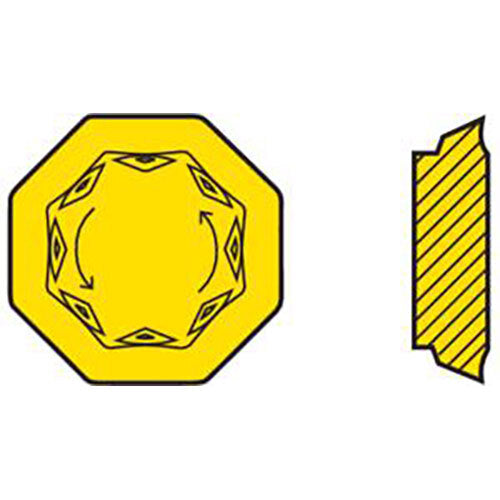

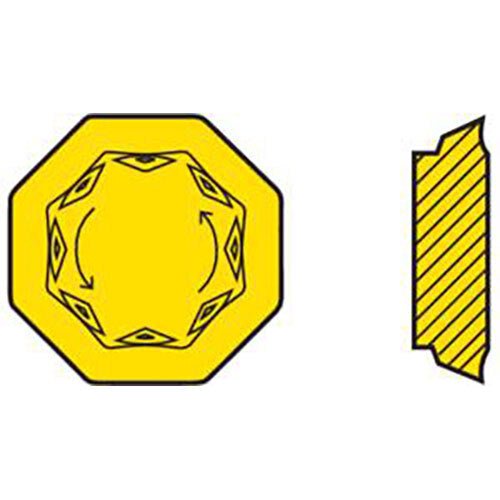

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade F15M R Type E07 Designation OFER070405N-E07,F15M Pack of 10

Octomill Insert Size 07 Grade F15M R Type (OFER0704-E07)

• Easy machining conditions, sharp insert cutting edge.
• OFER0704 Insert Seat Size Code (SSC).
• R type.

F15M Grade

• The hard and wear-resistant grade for milling in aluminum and non-ferrous alloys.
• Excellent grade, in combination with protected cutting edges, for high-speed machining in hardened steel.
• (Ti, Al) N – TiN.

About Seco Octomill Insert Size 07

• Cutter range 50-315 mm (2-5 inches).
• Max depth of cut 5 mm (0.197 inch)
• Recommended depth of cut 4 mm (0.157 inch).
• 8 cutting edges, single-sided inserts.
