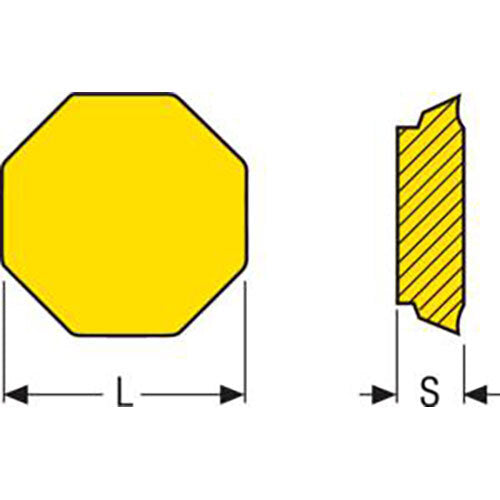

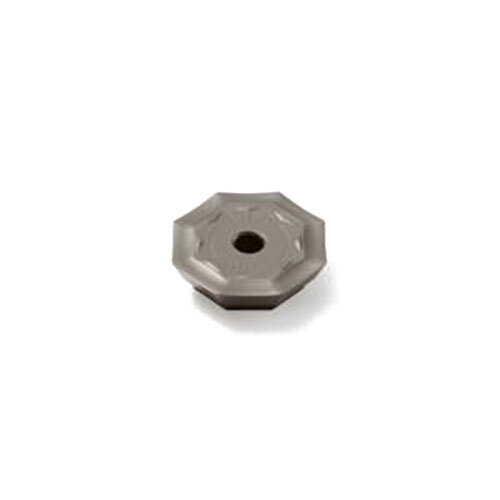

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade MK1500 R Type M16 Designation OFER070405TN-M16,MK1500 Pack of 10

Octomill Insert Size 07 Grade MK1500 R Type (OFER0704-M16)

• Medium machining condition.
• OFER0704 Insert Seat Size Code (SSC).
• R type.

MK1500 Grade

• CVD-coated grade based on Duratomic coating. Basic grade for milling cast iron and nodular cast iron, with or without coolant.
• Ti (C, N) – Al2O3.

About Seco Octomill Insert Size 07

• Cutter range 50-315 mm (2-5 inches).
• Max depth of cut 5 mm (0.197 inch)
• Recommended depth of cut 4 mm (0.157 inch).

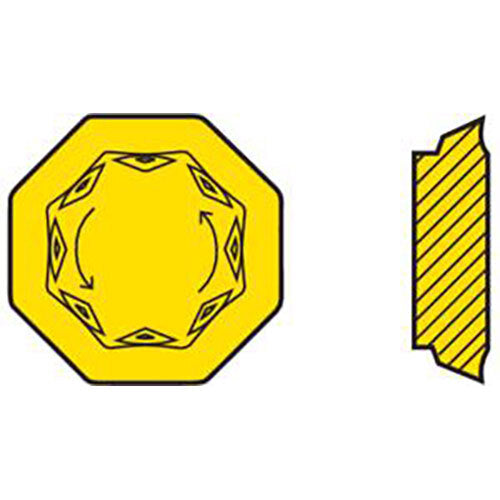

• 8 cutting edges, single-sided inserts.
