Octomill Insert Size 07 Grade MK1500 N | AIMS Industrial

***Illustrations shown may vary from actual product***

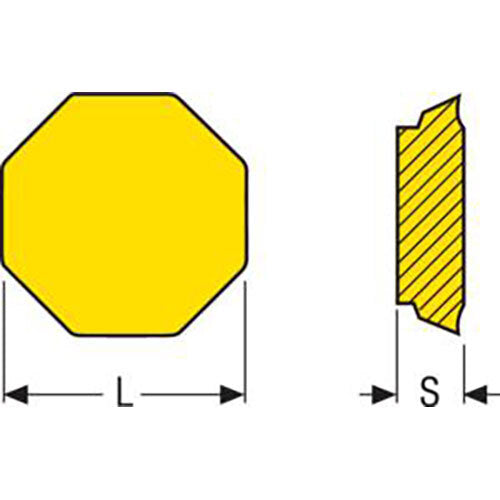

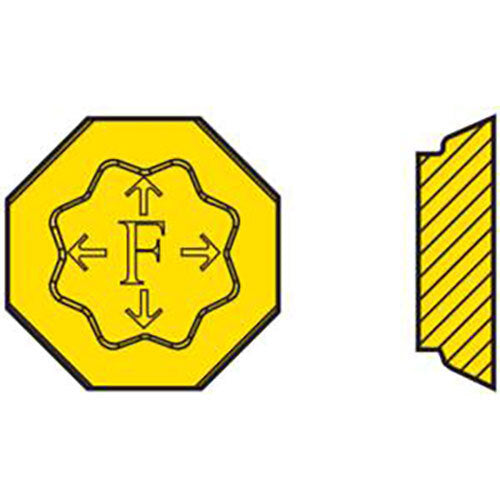

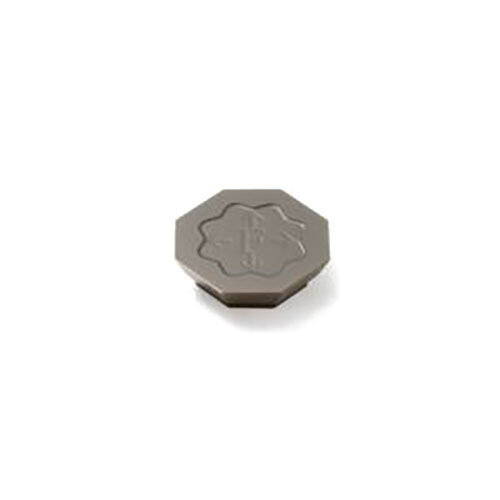

Seco Octomill Face Milling Insert Size 07 4.74 x 18.11 x 18.11mm Right Grade MK1500 N Type M16 Designation OFEN0704ZZTR-M16,MK1500 Pack of 10

Octomill Insert Size 07 Grade MK1500 N Type (OFEN07ZZ-M16)

• Medium machining condition.
• OFEN07ZZ-M16 Insert Seat Size Code (SSC).
• T type.

MK1500 Grade

• CVD-coated grade based on Duratomic coating. Basic grade for milling cast iron and nodular cast iron, with or without coolant.
• Ti (C, N) – Al2O3.

About Seco Octomill Insert Size 07

• Cutter range 50-315 mm (2-5 inches).
• Max depth of cut 5 mm (0.197 inch)
• Recommended depth of cut 4 mm (0.157 inch).
• 8 cutting edges, single-sided inserts.
