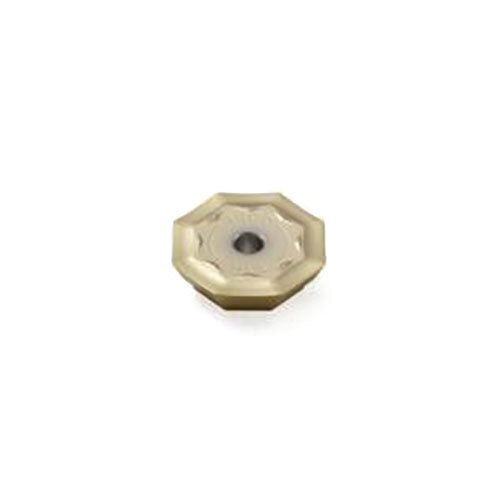

Seco Octomill Face Milling Insert Size 07 4.86 x 18.02 x 18.02mm Right Grade F40M R Type M15 Designation OFMR070405TR-M15,F40M Pack of 10

Seco Octomill Face Milling Insert Size 07 4.86 x 18.02 x 18.02mm Right Grade F40M R Type M15 Designation OFMR070405TR-M15,F40M Pack of 10

Octomill Insert Size 07 Grade F40M R Type (OFMR0704)

• Medium machining condition.
• OFMR0704 Insert Seat Size Code (SSC).
• R type.

F40M Grade

• PVD-coated grade for fine to medium rough milling.
• First choice for milling with small feeds and/or low cutting speeds.
• Excellent for milling when there is a risk of vibrations and when coolant is used.
• Recommended for machining superalloys.
• (Ti, Al) N – TiN.

About Seco Octomill Insert Size 07

• Cutter range 50-315 mm (2-5 inches).
• Max depth of cut 5 mm (0.197 inch)
• Recommended depth of cut 4 mm (0.157 inch).
• 8 cutting edges, single-sided inserts.
