Seco Turning External Toolholder Pin Lock | AIMS Industrial
Regular price
$158.58
Sale price
$158.58
Regular price
Inc. GST
Available
◆
External turning toolholder for engineering production work
●
1616 machine connection, 16 mm shank height
▲
D-shape insert compatible, Left-hand cut, 93 deg cutting edge angle

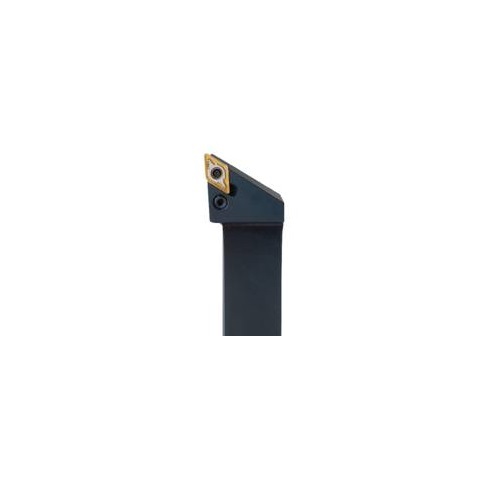

This is a Seco precision-machined external turning toolholder engineered for production CNC and machine-shop service. The 1616 machine-side connection and 16 mm x 16 mm shank match standard turret and tool-block locations. Designed for D-shape Seco inserts, left-hand cut geometry, 100 mm functional length, 93 deg cutting edge angle, P insert clamping. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
PDJNL1616H11mm tool holder
Model Number: 00038388
-
PDJNL2020K11mm tool holder
Model Number: 00038389
-
PDJNL2020K15mm tool holder
Model Number: 00038395
-
PDJNL2525M11mm tool holder
Model Number: 00038390
-
PDJNL2525M15mm tool holder
Model Number: 00038396
-
PDJNL3225P11mm tool holder
Model Number: 00038391
-
PDJNL3225P15mm tool holder
Model Number: 00038397
