Seco Turning External Toolholder Pin Lock | AIMS Industrial
Regular price
$177.83
Sale price
$177.83
Regular price
Inc. GST
Available
◆

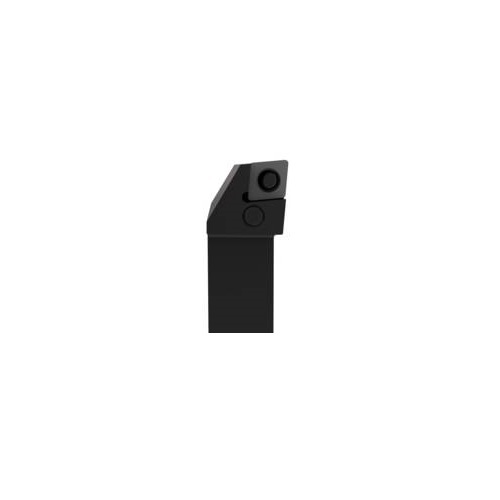

External turning toolholder for engineering production work
●
2020 machine connection, 20 mm shank height
▲
C-shape insert compatible, Left-hand cut, 95 deg cutting edge angle

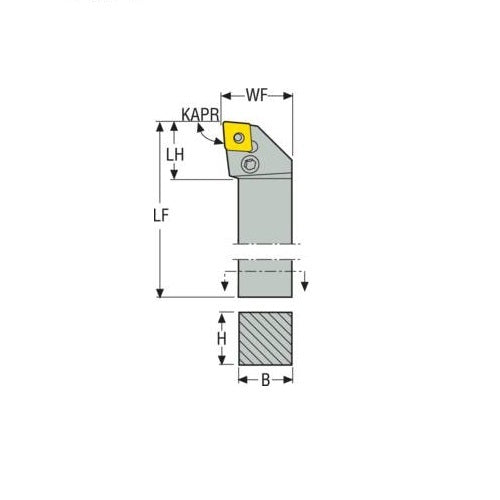

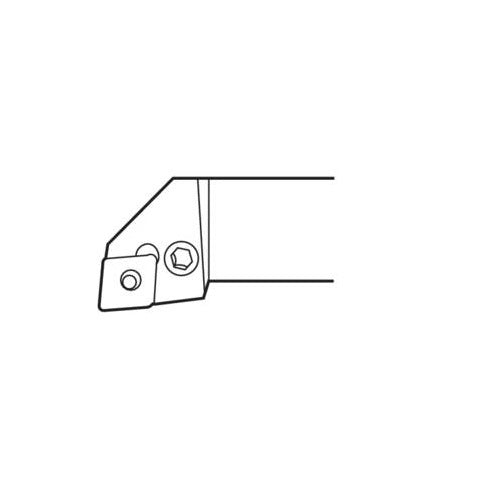

This is a Seco precision-machined external turning toolholder engineered for production CNC and machine-shop service. The 2020 machine-side connection and 20 mm x 20 mm shank match standard turret and tool-block locations. Designed for C-shape Seco inserts, left-hand cut geometry, 125 mm functional length, 95 deg cutting edge angle, P insert clamping. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
PCLNL2020K12mm tool holder
Model Number: 00038379
-
PCLNL2525M12mm tool holder
Model Number: 00038380
-
PCLNL2525M16mm tool holder
Model Number: 02903946
-
PCLNL3225P12mm tool holder
Model Number: 00038381
-
PCLNL3232P16mm tool holder
Model Number: 02871184
-
PCLNL3232P19mm tool holder
Model Number: 00734302
-
PCLNL4040S19mm tool holder
Model Number: 02468696
-
PCLNL4040S25mm tool holder
Model Number: 02766744
