Seco Turning External Toolholder Screw | AIMS Industrial

$173.25
$173.25
Inc. GST

Available

◆

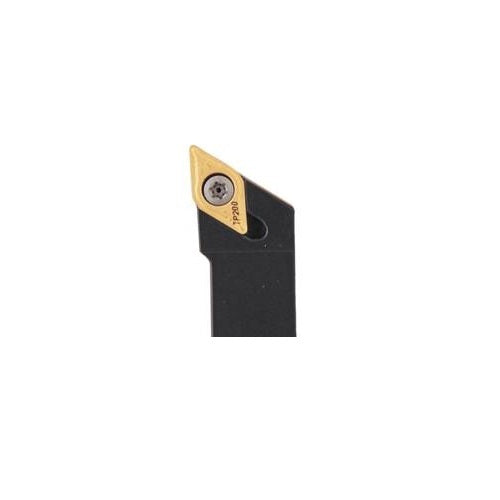

External turning toolholder for engineering production work
●

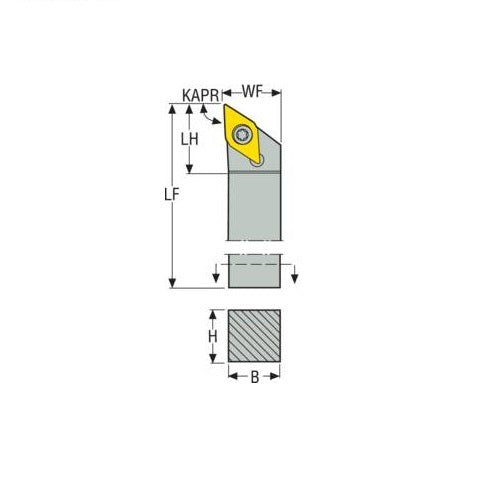

9.525 machine connection, 9.53 mm shank height
▲
D-shape insert compatible, Left-hand cut, 93 deg cutting edge angle

This is a Seco precision-machined external turning toolholder engineered for production CNC and machine-shop service. The 9.525 machine-side connection and 9.53 mm x 9.53 mm shank match standard turret and tool-block locations. Designed for D-shape Seco inserts, left-hand cut geometry, 63.5 mm functional length, 93 deg cutting edge angle, S insert clamping. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights −

This Seco precision-machined external turning toolholder is engineered for production CNC, mill-turn and lathe service. The 9.525 machine-side shank connection matches standard turret and tool-block fitments. Built with 9.53 mm x 9.53 mm shank, 63.5 mm functional length. Accepts D-shape Seco inserts with the S clamping system. Left-hand cut geometry with 93 deg tool cutting edge angle. Suited to external and internal turning, profiling and finishing on production CNC lathes and mill-turn centres.

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • SDJCL-6-2mm tool holder
    Model Number: 00071941
  • SDJCL-8-2mm tool holder
    Model Number: 00013342
  • SDJCL-8-3mm tool holder
    Model Number: 00071939
  • SDJCL-10-3mm tool holder
    Model Number: 00071947
  • SDJCL-12-3mm tool holder
    Model Number: 00043252
  • SDJCL-16-3mm tool holder
    Model Number: 00073938
