Seco Turning External Toolholder Screw | AIMS Industrial
Regular price
$173.25
Sale price
$173.25
Regular price
Inc. GST
Available
◆

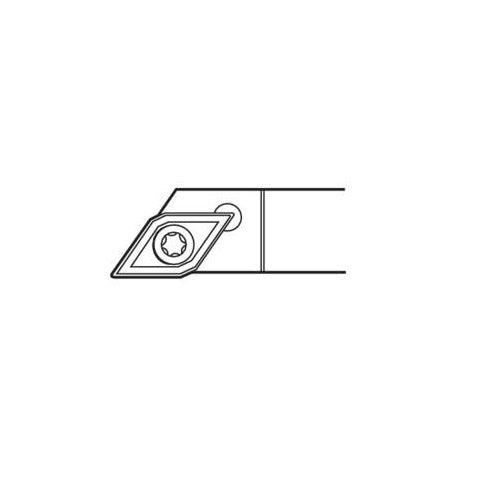

External turning toolholder for engineering production work
●
0808 machine connection, 8 mm shank height
▲
D-shape insert compatible, Right-hand cut, 90 deg cutting edge angle

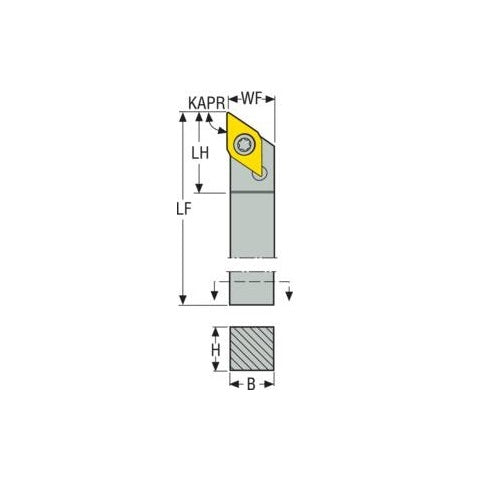

This is a Seco precision-machined external turning toolholder engineered for production CNC and machine-shop service. The 0808 machine-side connection and 8 mm x 8 mm shank match standard turret and tool-block locations. Designed for D-shape Seco inserts, right-hand cut geometry, 125 mm functional length, 90 deg cutting edge angle, S insert clamping. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
SDACR0808K07mm tool holder
Model Number: 00042846
-
SDACR1010M07mm tool holder
Model Number: 00069721
-
SDACR1212M07mm tool holder
Model Number: 00079389
-
SDACR1212M11mm tool holder
Model Number: 00042847
-
SDACR1414M11mm tool holder
Model Number: 00042849
-

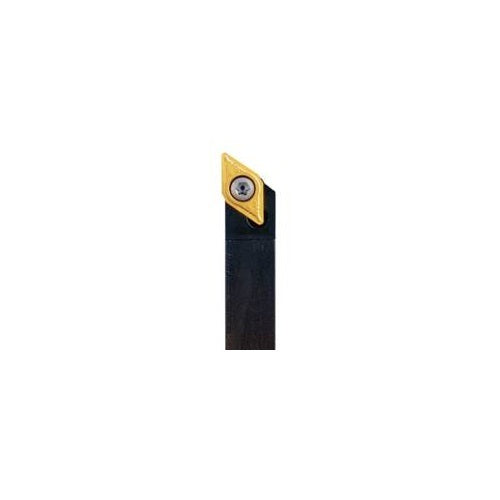

SDACR1616H11mm tool holder
Model Number: 02430870
