Seco SVJBR1010M11 External Turning Toolholder
Available
Genuine Seco Turning External Toolholder. This Seco external turning toolholder clamps 35° rhombic (diamond) (ISO shape code V) inserts with a screw lock system. Tool type: J — offset shank with –3° side cutting edge angle. The insert side clearance angle is 5°. It is used on CNC and manual lathes for external turning. This page lists 4 options.
Key Specifications
| Locking System | Screw lock |
|---|---|
| Insert Shape | 35° rhombic (diamond) (ISO shape code V) |
| Tool Type | J — offset shank with –3° side cutting edge angle |
| Insert Side Clearance Angle (ISCA) | 5° |
About Shank Toolholders and Boring Bars
Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications. Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs. This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

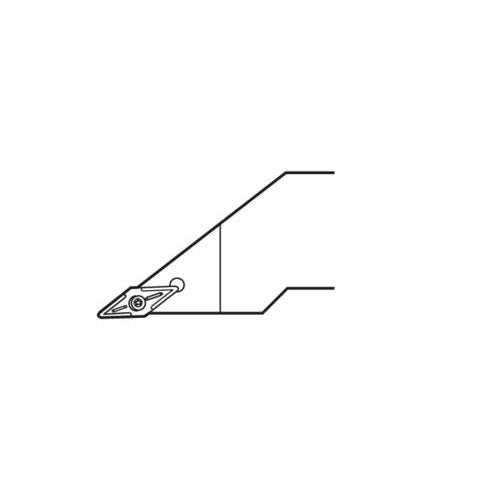

Seco Screw Lock Right - J Type - V Insert Shape - 5° ISCA: SVJBR1010M11
SKU: A0115548 | Model: 02431006

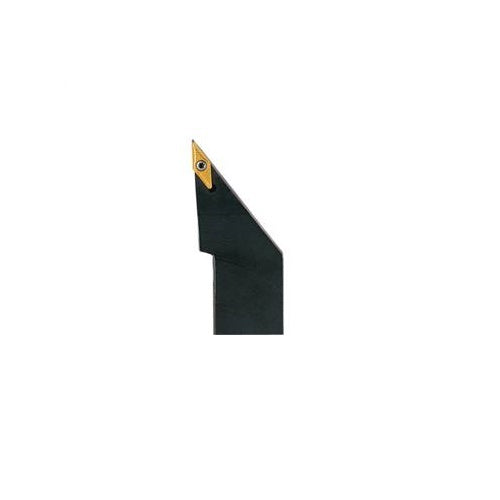

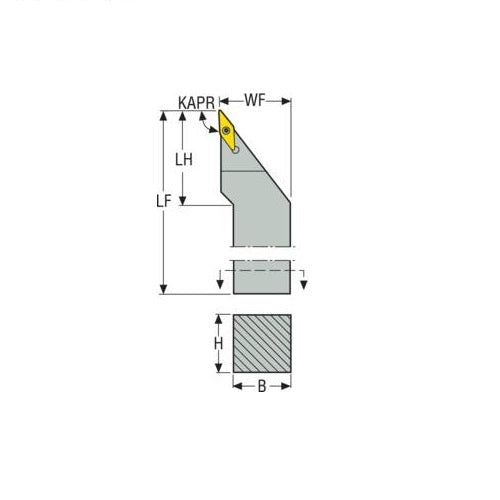

Seco Turning External Toolholder Screw Lock 150 x 10 x 11mm Right 93° V Insert Shape SVJBR1010M11
Turning External Toolholder (Screw Lock - J Type - V Insert Shape - 5° ISCA)
Screw lock.
5° Insert side clearance angle.
V insert shape.
J tool type, offset shank with –3° side cutting edge angle.
About Shank Toolholders and Boring Bars:
Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
