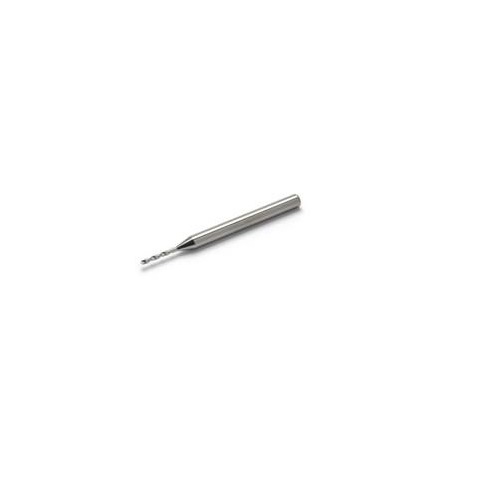

Seco SD26 1.4 x 11.2mm Solid Carbide Micro Drill Bit SD26-1.40-9.20-3R1
Seco SD26 1.5 x 11.2mm Solid Carbide Micro Drill Bit SD26-1.50-9.20-3R1
Seco SD26 1.6 x 13.4mm Solid Carbide Micro Drill Bit SD26-1.60-11.20-3R1
Seco SD26 1.7 x 13.4mm Solid Carbide Micro Drill Bit SD26-1.70-11.20-3R1
Seco SD26 1.8 x 13.4mm Solid Carbide Micro Drill Bit SD26-1.80-11.20-3R1
Seco SD26 1.9 x 13.4mm Solid Carbide Micro Drill Bit SD26-1.90-11.20-3R1
Seco SD26 2 x 13.4mm Solid Carbide Micro Drill Bit SD26-2.00-11.20-3R1
Seco SD26 Solid Carbide Micro Drill Bit1
Seco SD26 Solid Carbide Micro Drill Bit2
Seco SD26 Solid Carbide Micro Drill Bit3
Seco SD26 0.1 x 0.7mm Solid Carbide Micro Drill Bit SD26-0.10-0.40-3R1
Seco SD26 0.15 x 1.4mm Solid Carbide Micro Drill Bit SD26-0.15-0.65-3R1
Seco SD26 0.2 x 1.8mm Solid Carbide Micro Drill Bit SD26-0.20-1.25-3R1
Seco SD26 0.25 x 2.2mm Solid Carbide Micro Drill Bit SD26-0.25-1.55-3R1
Seco SD26 0.3 x 2.4mm Solid Carbide Micro Drill Bit SD26-0.30-1.80-3R1
Seco SD26 0.35 x 2.8mm Solid Carbide Micro Drill Bit SD26-0.35-2.20-3R1
Seco SD26 0.4 x 3.6mm Solid Carbide Micro Drill Bit SD26-0.40-2.70-3R1
Seco SD26 0.45 x 3.6mm Solid Carbide Micro Drill Bit SD26-0.45-2.70-3R1
Seco SD26 0.5 x 4mm Solid Carbide Micro Drill Bit SD26-0.50-3.20-3R1
Seco SD26 0.55 x 4.5mm Solid Carbide Micro Drill Bit SD26-0.55-3.60-3R1
Seco SD26 0.6 x 4.5mm Solid Carbide Micro Drill Bit SD26-0.60-3.60-3R1
Seco SD26 0.65 x 5mm Solid Carbide Micro Drill Bit SD26-0.65-3.90-3R1
Seco SD26 0.7 x 5.6mm Solid Carbide Micro Drill Bit SD26-0.70-4.50-3R1
Seco SD26 0.75 x 5.6mm Solid Carbide Micro Drill Bit SD26-0.75-4.50-3R1
Seco SD26 0.8 x 6.3mm Solid Carbide Micro Drill Bit SD26-0.80-5.00-3R1
Seco SD26 0.85 x 6.3mm Solid Carbide Micro Drill Bit SD26-0.85-5.00-3R1
Seco SD26 0.9 x 7.1mm Solid Carbide Micro Drill Bit SD26-0.90-5.70-3R1
Seco SD26 0.95 x 7.1mm Solid Carbide Micro Drill Bit SD26-0.95-5.70-3R1
Seco SD26 1 x 8mm Solid Carbide Micro Drill Bit SD26-1.00-6.50-3R1
Seco SD26 1.1 x 9mm Solid Carbide Micro Drill Bit SD26-1.10-7.30-3R1
Seco SD26 1.2 x 10mm Solid Carbide Micro Drill Bit SD26-1.20-8.20-3R1
Seco SD26 1.3 x 10mm Solid Carbide Micro Drill Bit SD26-1.30-8.20-3R1
Seco SD26 1.4 x 11.2mm Solid Carbide Micro Drill Bit SD26-1.40-9.20-3R1
Seco SD26 1.5 x 11.2mm Solid Carbide Micro Drill Bit SD26-1.50-9.20-3R1
Seco SD26 1.6 x 13.4mm Solid Carbide Micro Drill Bit SD26-1.60-11.20-3R1
Seco SD26 1.7 x 13.4mm Solid Carbide Micro Drill Bit SD26-1.70-11.20-3R1
Seco SD26 1.8 x 13.4mm Solid Carbide Micro Drill Bit SD26-1.80-11.20-3R1
Seco SD26 1.9 x 13.4mm Solid Carbide Micro Drill Bit SD26-1.90-11.20-3R1
Seco SD26 2 x 13.4mm Solid Carbide Micro Drill Bit SD26-2.00-11.20-3R1

Seco SD26 Solid Carbide Micro Drill Bit

Seco SD26 Solid Carbide Micro Drill Bit

SKU: A0113366

Type: SD26 Micro Drill Bit

$46.18
$46.18
Inc. GST
Buy It Now

Available

The Seco SD26 Solid Carbide Micro Drill Bit by SECO is a SD26 Micro Drill Bit made of uncoated solid carbide. It offers a drilling depth of up to 6xD and is suitable for small part production in the general engineering industry.

Resources

File icon
SECO-Holemaking-Tools-Catalog

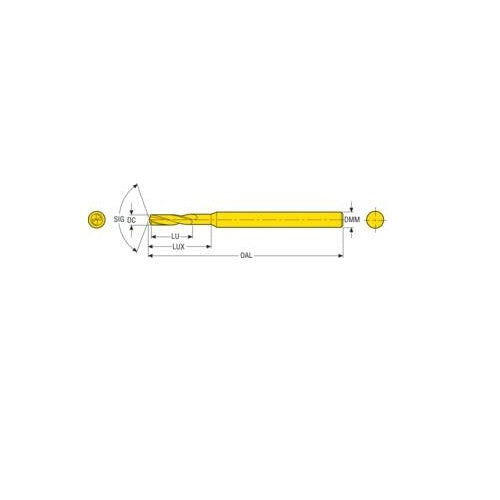

SD26 Solid Carbide Micro Drill Bit

  • SD26 is a micro drill that can reach a drilling depth of up to 6xD with diameters in steps of 0.01 mm and a diameter tolerance of 0/+0.005 mm.
  • The shanks are 3 mm with an h6 tolerance.
  • SD26 drills are uncoated and have a 130-degree point angle.

About SD22 and SD26 Drills

  • SD22 and SD26 drills are capable of delivering dramatic performance increases compared to traditional HSS drills often used today.
  • These improvements include much higher productivity, significantly increased tool life, higher hole quality and lower cost per component.
  • Diameter range 0.1 – 2 mm (.004 - .078 inch).
  • These families were designed specifically for applications in the automotive and medical industries, as well as for small part production in the general engineering industry.
