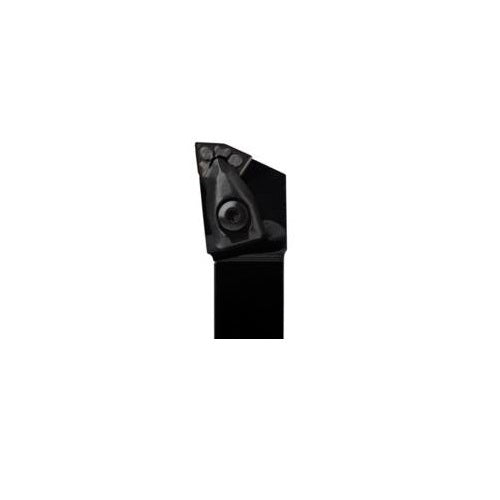

Seco DWLNL1616H06 External Turning Toolholder

$158.58
$158.58
Inc. GST

Available

◆
External turning toolholder for engineering production work
●
1616 machine connection, 16 mm shank height
▲
W-shape insert compatible, Left-hand cut, 95 deg cutting edge angle

This is a Seco precision-machined external turning toolholder engineered for production CNC and machine-shop service. The 1616 machine-side connection and 16 mm x 16 mm shank match standard turret and tool-block locations. Designed for W-shape Seco inserts, left-hand cut geometry, 100 mm functional length, 95 deg cutting edge angle, D insert clamping. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights −

This Seco precision-machined external turning toolholder is engineered for production CNC, mill-turn and lathe service. The 1616 machine-side shank connection matches standard turret and tool-block fitments. Built with 16 mm x 16 mm shank, 100 mm functional length. Accepts W-shape Seco inserts with the D clamping system. Left-hand cut geometry with 95 deg tool cutting edge angle. Suited to external and internal turning, profiling and finishing on production CNC lathes and mill-turn centres.

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • DWLNL1616H06mm tool holder
    Model Number: 02588239
  • DWLNL2020K06mm tool holder
    Model Number: 00038361
  • DWLNL2020K08mm tool holder
    Model Number: 02588242
  • DWLNL2525M06mm tool holder
    Model Number: 00038362
  • DWLNL2525M08mm tool holder
    Model Number: 00038368
  • DWLNL3232P06mm tool holder
    Model Number: 02588240
  • DWLNL3232P08mm tool holder
    Model Number: 00038370
