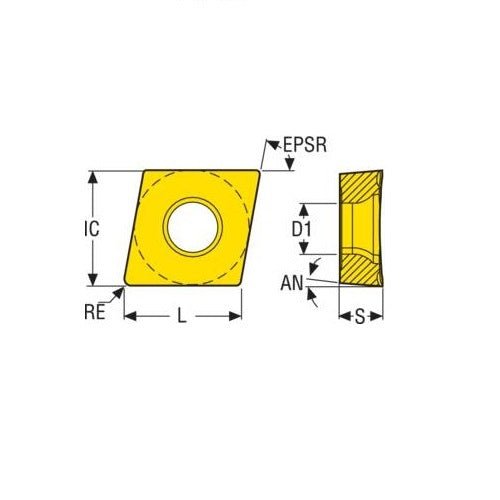

Seco Turning Insert C Shape Code 2.38 x 0.2 x 6.35mm X Insert Type - W-F1 7° Grade TP2501 ± 0.05/± 0.025mm CCGX060202W-F1 Pack of 10

Turning Insert C Shape Code X Insert Type - W-F1 7° Grade TP2501

• C shape code.
• X Insert Type.
• 7° insert side clearance angles.

TP2501 Insert Grade

• CVD Coated
• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

W-F1 Chipbreaker Programme

• A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
• Suitable for high feed rates at small depths of cut.
• Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
