Seco CCMT09T308W-MF2 Turning Insert TM2501
Available

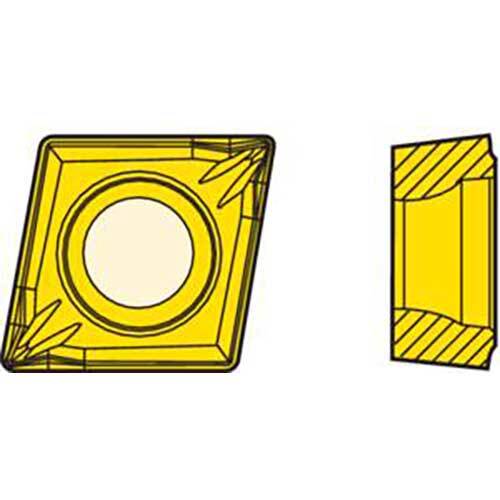

Genuine Seco 80° rhombic (diamond) turning insert, Grade TM2501 with MF2 chipbreaker.
Key Specifications
| Grade | TM2501 |
|---|---|

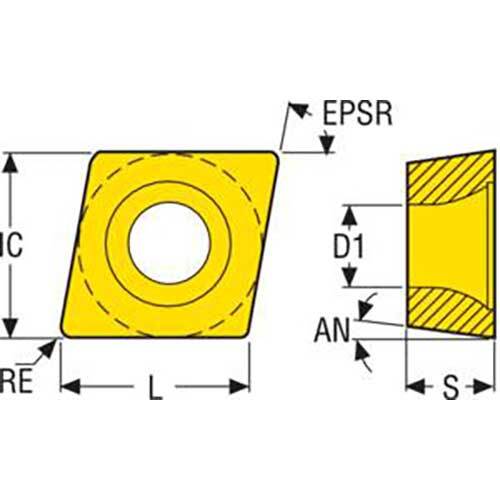

| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MF2 |
| Insert Details | T Insert Type. |
About Grade TM2501
Duratomic® grade. A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness. First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). W-
About the MF2 Chipbreaker
First choice for finishing with both positive and negative inserts. Chipbreaker is suitable for finishing machining of steel, stainless steel, and cast iron at high feed rates giving a good surface finish. Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
