Turning Insert CNMG Insert Style - M1 | AIMS Industrial

***Illustrations shown may vary from actual product***

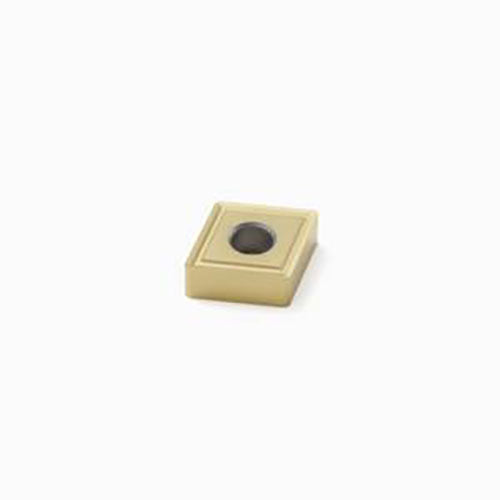

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - M1 Grade TS2000 ± 0.13/± 0.05mm Tolerance CNMG120404-M1,TS2000 10pcs

Turning Insert CNMG Insert Style - M1 Grade TS2000

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• TS2000 insert grade.

TS2000 Insert Grade

• Hard micrograin wear-resistant grade intended for fi nishing in superalloys and titanium as well as in many stainless steels.
• (Ti, Al)N + TiN

M1 Chipbreaker Programme

• Chipbreaker intended for superalloys and titanium alloys.
• It has a positive cutting rake angle which is slightly honed to increase the edge strength. Also available with a perfectly sharp edge (type ..GG insert).
• The M1 is intended for light roughing and for semi-finishing.
• Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1,5–5,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
