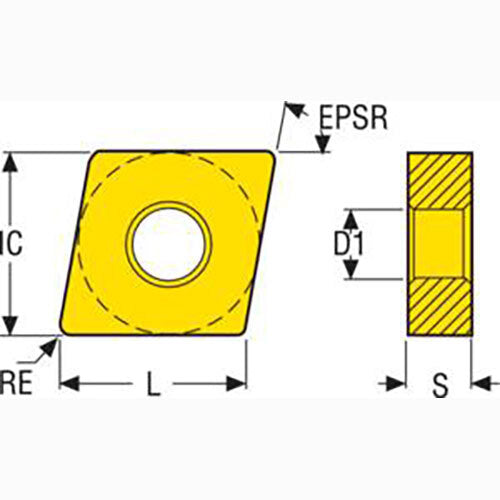

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - M3 Grade TP40 ± 0.13/± 0.05mm Tolerance CNMG120404-M3,TP40 10pcs

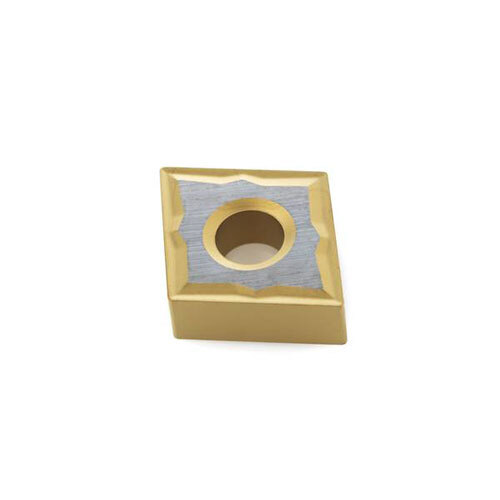

Turning Insert CNMG Insert Style - M3 Grade TP40
- C shape code.
- G insert type, with hole and chip breaker on both faces.
- TP40 insert grade.
TP40 Insert Grade
- Universal grade for a extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
- TiC/Ti(C,N) + TiN.
M3 Chipbreaker Programme
- First choice for medium-rough machining and also the most versatile Seco chipbreaker.
- In most cases, it is the only chipbreaker needed.
- It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
- Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
- Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- to boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
