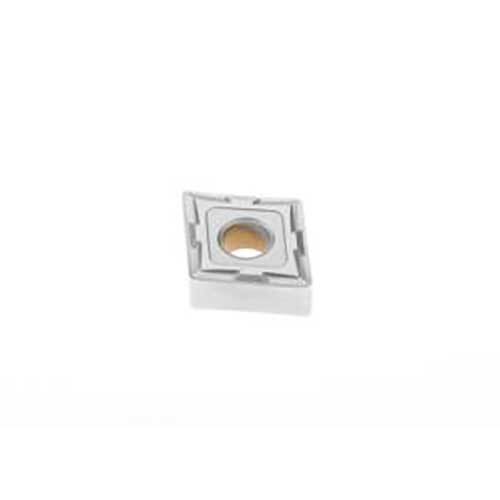

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - MF2 Grade TP2501 CNMG120404-MF2,TP2501 - Pack of 10
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP2501 with MF2 chipbreaker. This is the CNMG insert style in grade TP2501 (Carbide CVD), with the MF2 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 2 options.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MF2 |
| Insert Details | C Shape Code. TP2501 insert grade. |
About Grade TP2501
Carbide CVD. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF2 Chipbreaker
First choice for finishing with negative inserts. Suitable for chip control at depths of cutting down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev. Good capacity for medium rough machining. Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.
