***Illustrations shown may vary from actual product***

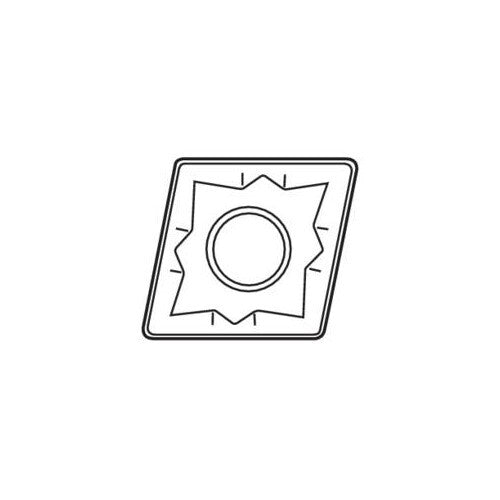

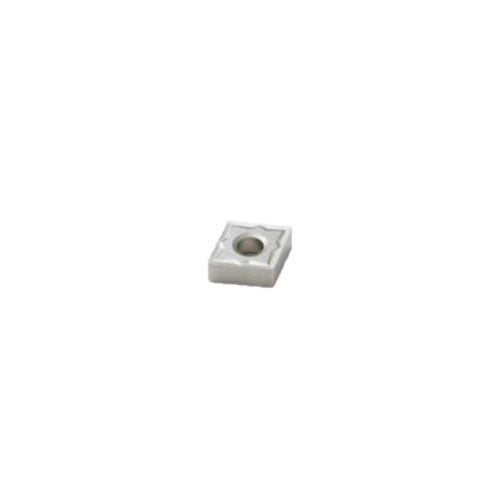

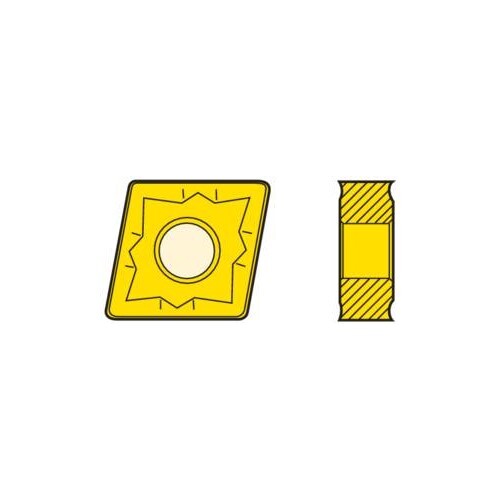

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MR3 Grade 890 ± 0.13/± 0.05mm Tolerance CNMG120408-MR3,890 10pcs

Turning Insert CNMG Insert Style - MR3 Grade 890

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• 890 insert grade.

890 Insert Grade

• High hardness uncoated micrograin grade maintaining good toughness intended for superalloys and titanium can also be applied in other materials.

MR3 Chipbreaker Programme

• Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength.
• Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel.
• Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
