Seco CNMG120408W-MF2 Turning Insert TP0501
Available

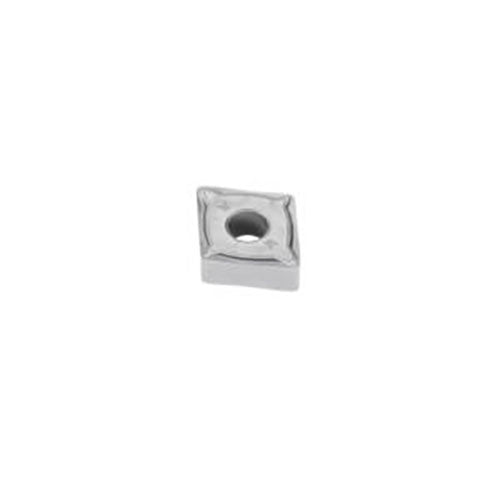

Genuine Seco 80° rhombic (diamond) turning insert, Grade TP0501.
Key Specifications
| Grade | TP0501 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Insert Details | C shape code. G insert type, with hole and chipbreaker on both faces. TP0501 insert grade. |
About Grade TP0501
Duratomic® grade. A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). W-MF2 Chipbreaker Prog.ramme First choice for finishing with both positive and negative inserts. Chipbreaker is suitable for finishing machining of steel, stainless steel and cast iron at high feed rates giving good surface finish. Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
