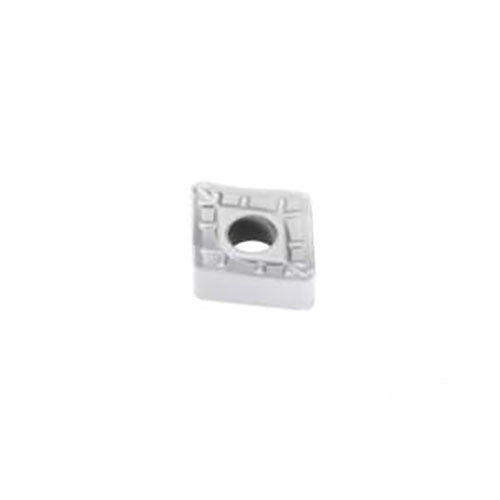

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm M Insert Type - R4 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMM120408-R4,TP2501 10pcs

Turning Insert CNMM Insert Style - R4 Grade TP2501 0.8mm Corner Radius (RE)

• C shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP2501 insert grade.
• 0.8mm corner radius (RE).

TP2501 Insert Grade

• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steel as well as many stainless steel and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R4 Chipbreaker Programme

• Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces.
• Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
