Turning Insert CNMG Insert Style - MR7 | AIMS Industrial

***Illustrations shown may vary from actual product***

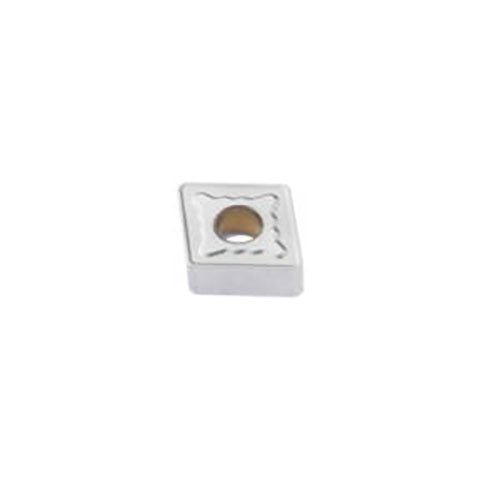

Seco Turning Insert C Shape Code 4.76 x 1.2 x 12.7mm G Insert Type - MR7 Grade TP0501 ± 0.13/± 0.05mm Tolerance CNMG120412-MR7,TP0501 10pcs

Turning Insert CNMG Insert Style - MR7 Grade TP0501 4.76mm Insert Thickness (S)

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• TP0501 insert grade.
• 4.76mm insert thickness (S).

TP0501 Insert Grade

• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MR7 Chipbreaker Programme

• The strongest chipbreaker for double-sided inserts.
• The MR7 is suitable for high feed rates and depths of cut that normally require a single-sided insert.
• The chipbreaker has a wide negative T land, which gives high edge strength.
• Indicative machining range: f = 0,35–0,90 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
