Turning Insert CNMM Insert Style - R8 | AIMS Industrial

***Illustrations shown may vary from actual product***

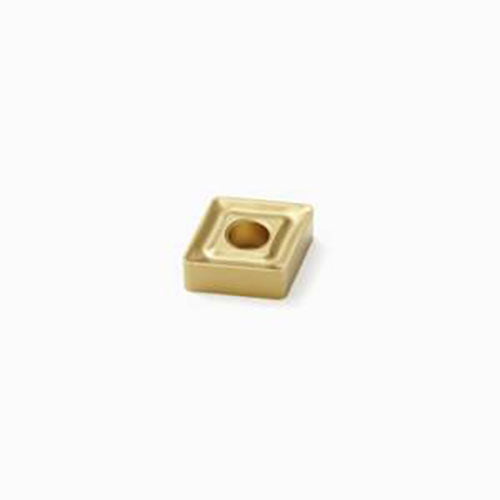

Seco Turning Insert C Shape Code 4.76 x 1.2 x 12.7mm M Insert Type - R8 Grade TP40 ± 0.13/± 0.05mm Tolerance CNMM120412-R8,TP40 10pcs

Turning Insert CNMM Insert Style - R8 Grade TP40

• C shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP40 insert grade.

TP40 Insert Grade

• Universal grade for a extremely secure performance in the most demanding application from steels, stainless steel to superalloys especially in castings and forgings.
• TiC/Ti(C,N) + TiN.

R8 Chipbreaker Programme

• A very strong chipbreaker for single-sided inserts. The R8 is intended for high feed rates when machining castings and forgings of austenitic stainless steel.
• Indicative machining range: f = 0,35–0,80 mm/rev, ap = 2–12 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
