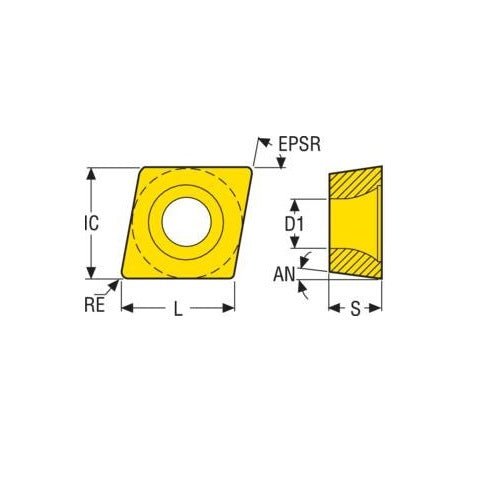

Seco Turning Insert C Shape Code 5.56 x 1.2 x 15.88mm T Insert Type - M5 7° Grade TP3501 ± 0.13/± 0.100mm CCMT160512-M5 Pack of 10

Turning Insert C Shape Code T Insert Type - M5 7° Grade TP3501 - 1.2mm Corner Radius

• C shape code
• T Insert Type.
• 7° insert side clearance angles.
• 1.2mm corner radius (RE).

TP3501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steel as well as stainless steels especially including interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

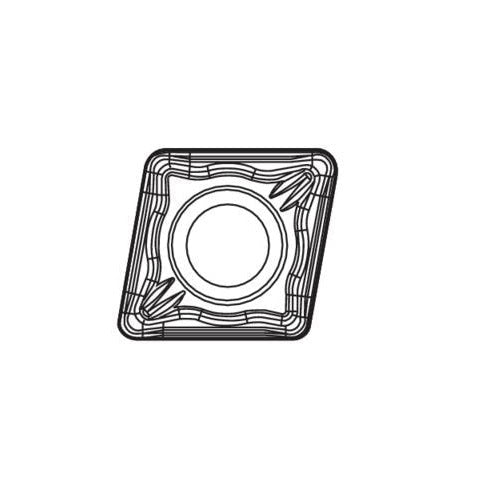

M5 Chipbreaker Programme

• A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron.
• Combines high edge strength with comparatively low cutting forces.
• Safe action in interruptions and rough skin on parts also including boring.
• Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
