Turning Insert CNMG Insert Style - MF4 | AIMS Industrial

***Illustrations shown may vary from actual product***

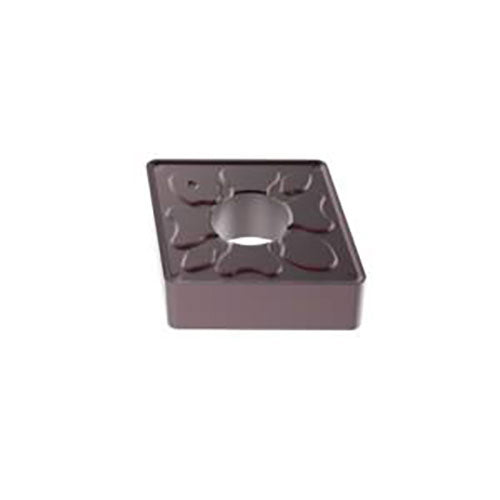

Seco Turning Insert C Shape Code 6.35 x 1.2 x 19.05mm G Insert Type - MF4 Grade TH1000 ± 0.13/± 0.05mm Tolerance CNMG190612-MF4,TH1000 10pcs

Turning Insert CNMG Insert Style - MF4 Grade TH1000

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• TH1000 insert grade.

TH1000 Insert Grade

• A very hard super micro-grain grade intended for partly hardened steel components as well as generally workpiece materials such as superalloys and due to remarkable edge toughness, it also provides high performance in interrupted cuts and hard-surface removal.
• Ti-Al-Si-N nanolaminate coating.

MF4 Chipbreaker Programme

• Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry.
• Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
