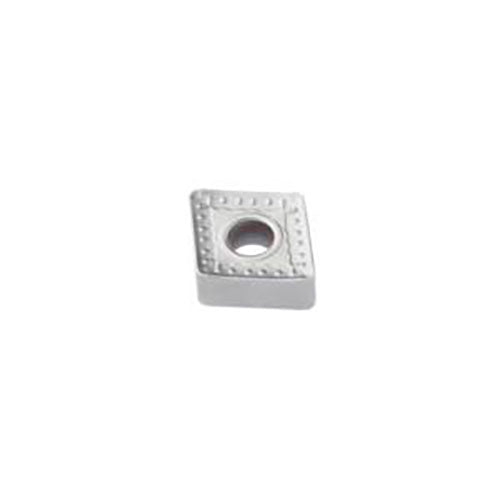

Seco CNMM160616-R5 Turning Insert TP1501
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP0501 with R5 chipbreaker.
Key Specifications
| Grade | TP0501 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | R5 |
| Insert Details | C shape code. M insert type, with hole and chipbreaker on one face only. TP1501 insert grade. |
About Grade TP0501
Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the R5 Chipbreaker
Chipbreaker for single-sided inserts. Recommended for medium-roughing of steel. Indicative machining range: f = 0,3–1,0 mm/rev, ap = 2–12 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
