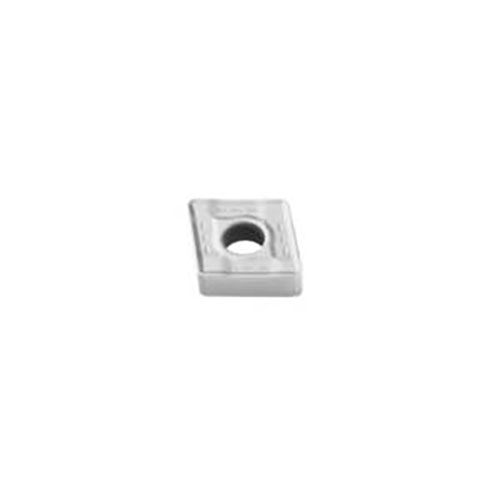

Seco CNMM160616-RR6 Turning Insert TP1501
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP1501 with RR6 chipbreaker.
Key Specifications
| Grade | TP1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | RR6 |
| Insert Details | C shape code. M insert type, with hole and chipbreaker on one face only. TP1501 insert grade. |
About Grade TP1501
Carbide CVD. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the RR6 Chipbreaker
A very easy-cutting chipbreaker for single-sided inserts. Recommended for roughing of stainless steel and steel. Indicative machining range: f = 0,3–1,0 mm/rev, ap = 2–12 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
