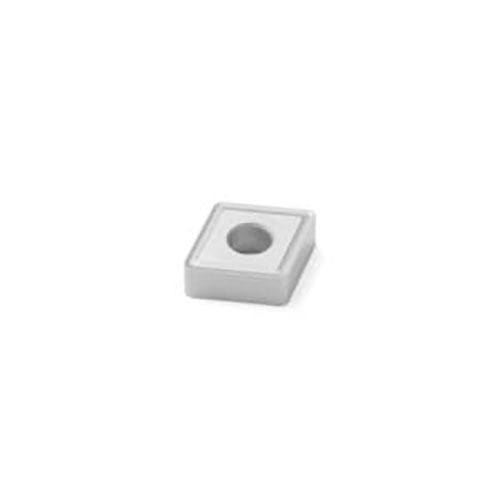

Seco CNMG250924-MR4 Turning Insert TP3501
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP3501 with MR4 chipbreaker.
Key Specifications
| Grade | TP3501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MR4 |
| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TP3501 insert grade. |
About Grade TP3501
Carbide CVD. Duratomic® grade. Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)
About the MR4 Chipbreaker
The MR4 has a negative T-land, which gives extremely high edge strength. The chip breaker is intended for more difficult machining applications on superalloys and titanium alloys, such as intermittent cuts and the machining of parts with the raw surface. Indicative machining range: f = 0,15–0,50 mm/rev, ap = 1,5–7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
