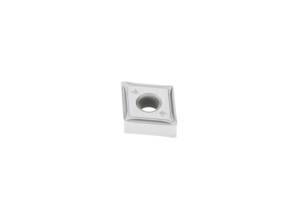

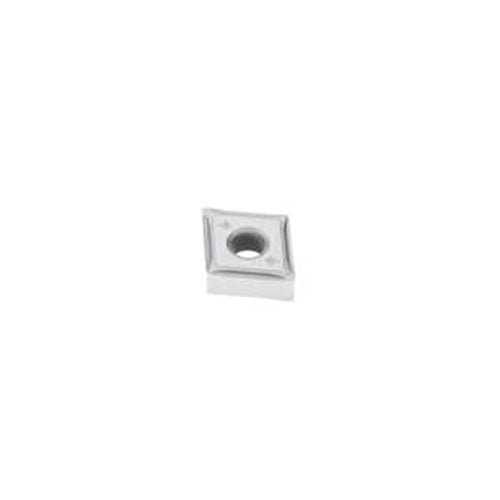

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - W-MF2 Grade TP1501 ± 0.13/± 0.05mm Tolerance CNMG120404W-MF2,TP1501 10pcs

Turning Insert CNMG Insert Style - W-MF2 Grade TP1501

• C shape code.
• G insert type, with hole and chipbreaker on both faces.
• TP1501 insert grade.

TP1501 Insert Grade

• Duratomic® grade.
• Highly heat and wear-resistant grade extremely well suited for productive general turning of steel and a useful backup in other material groups.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF2 Chipbreaker Prog.ramme

• First choice for finishing with both positive and negative inserts.
• Chipbreaker is suitable for finishing machining of steel, stainless steel and cast iron at high feed rates giving good surface finish.
• Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
